ABB 2CKA006400A0085 Flush Mounted Inserts - CE Declaration
Part Number: 2CKA006400A0085
Quick Summary

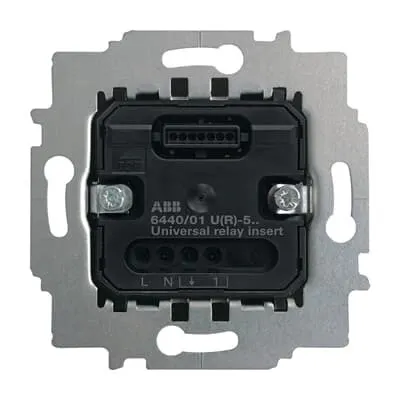

ABB 2CKA006400A0085 Flush Mounted Inserts deliver 230 V control for lighting systems in 1-gang installations. This compact module simplifies modernizations by delivering a reliable three-wire connection while preserving existing Busch control element ecosystems. Engineers often face wiring complexity and compatibility gaps when upgrading flush-mounted interfaces; this insert integrates seamlessly with Busch-Comfort switches (6815 to 6811) and presence detectors (6813 to 6812), and it is combinable with the Universal slave insert 6440/05 U. Its push-button operation supports both dedicated flush-mounted units and conventional push buttons (2020 US, 2021/6 UK). With CE conformity and robust RoHS/REACH compliance, it provides a dependable upgrade path without redesigning the panel.
Product Information
Extended Description
2CKA006400A0085 ABB: 3 wire connection (neutral conductor required). For switching lighting systems. For Busch-Comfort switch control element 6815-to-101. For Busch-Presence detector sensors 6813- to -102. Combinable with Universal slave insert 6440/05 U. Operation in 1gang 2way installations via push switch-unit for combination with flush-mounted units. Operation also possible via conventional push buttons (2020 US, 2021/6 UK).
Mounting Type
Flush Mounted
Ambient Air Temperature
Operation -5 ... +45 °C
Number of Outputs
1
Rated Voltage (Ur)
230 V
Rated Frequency (f)
50 / 60 Hz
Maximum Switching Power
Fluorescent Lamp 2300 V·A | Halogen Low Voltage Lamps with Electronical Transformers (Capacitive Loads) 2300 V·A | Halogen Low Voltage Lamps with Magnetic Transformers (Inductive Loads) 2300 V·A | Incandescent Lamp or Halogen High Voltage Lamps 2300 W | LEDi 100 V·A
Load Type
Universal and LED Retrofit | LEDi/CFLi | Incandescent lamp | Halogen lamp, high voltage | Halogen lamp, low voltage | Fluorescent lamp
Power Loss
0.3 W
Product Net Width
0.036 m
Product Net Height
0.05 m
Product Net Depth / Length
0.086 m
Product Net Weight
80.5 g
Built-In Depth (t2)
32 mm
Replacement Product ID (NEW)
2CKA006800A3042
E-Number (Finland)
2620054
E-Number (Sweden)
1301259
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6440/01 U-500
ETIM 9
EC001588 - Electronic switch
eClass
V11.0 : 27144054
Feature: Flush-mounted design minimizes panel intrusion and simplifies wiring in 1-gang installations. Business Impact: Reduces on-site time and commissioning risk, accelerating project timelines. Application: Ideal for lighting control in office, retail, and light industrial environments where a compact, maintenance-friendly insert is needed. Feature: 3-wire connection (neutral required) for reliable switching. Business Impact: Enables stable operation with modern lighting loads and sensors, reducing nuisance operation. Application:Compatible with Busch-Comfort switches and detectors, and supports combination with flush-mounted units via 6440/05 U. Feature: Rated 230 V with 50/60 Hz. Business Impact: Broad mains compatibility reduces variants across sites, lowering inventory and procurement complexity. Application: Global installations using standard line voltage.Feature: Maximum switching power 2300 VA across diverse loads. Business Impact: Lets a single device drive fluorescent, LED retrofit, incandescent, and halogen loads, reducing device count. Application: Suitable for mixed lighting systems in commercial/industrial settings.Feature: RoHS/REACH compliance and WEEE readiness with CE declaration. Business Impact: Minimizes regulatory risk and simplifies supplier compliance for audits. Application: Ideal for EU-based projects and regulated environments.Feature: Compatibility with Busch ecosystem (6815-101 switches, 6813-102 detectors) and the universal slave insert 6440/05 U. Business Impact: Streamlines retrofits and upgrades by preserving existing control networks. Application: Use in retrofit projects and new builds that leverage Busch control elements.
Get a Quick Quote for a ABB 2CKA006400A0085
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA006400A0085?
Enquire Now
FAQs
Yes. It supports 1-gang, 2-way operation via a push switch-unit and is designed to work with Busch-Comfort control elements (6815 to 101) and Busch presence detectors (6813 to 102). It is also combinable with the universal slave insert 6440/05 U, making it a flexible retrofit or new-install feature in Busch-based panels.
The insert operates at 230 V with a rated frequency of 50/60 Hz and provides a single output. It supports a maximum switching power of 2300 VA across fluorescent, incandescent, halogen, and LED retrofit loads, with a power loss of 0.3 W, suitable for continuous duty in lighting control circuits.
It is compatible with universal and LED retrofit loads, including fluorescent, LEDi/CFLi, incandescent, and halogen lamps. Its ambient operating range is -5 to +45 °C, making it suitable for office, retail, and light industrial environments where reliable, space-saving flush-mounted control is needed.
The device carries a CE declaration of conformity and complies with RoHS and REACH requirements. It aligns with WEEE category 5 and corresponds to ETIM 9 EC001588 electronic switch and eClass 27144054 classifications, supporting regulated procurement and audits.
With a low power loss of 0.3 W and robust compatibility within the Busch ecosystem, the insert reduces energy waste and stock-keeping complexity. The replacement product ID is 2CKA006800A3042, facilitating future part replacement, upgrades, and minimal downtime during lifecycle maintenance.
