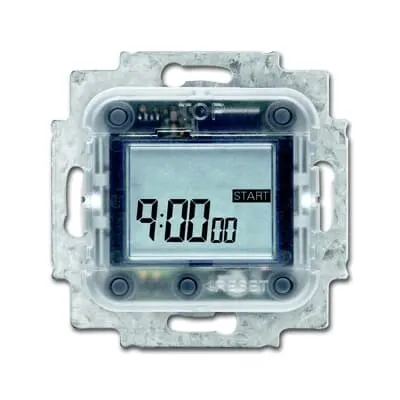

ABB 2CKA006410A0393 Timer Insert - CE RoHS Compliant
Part Number: 2CKA006410A0393
Quick Summary
ABB 2CKA006410A0393 timer insert provides precise time-switching for controlling electrical loads in control panels. Engineers often struggle with reliable on-off scheduling for motors, heaters, and pumps when relying on manual timers, which leads to startup delays and unnecessary energy waste. This device is CE certified and RoHS compliant, with REACH declarations and SCIP registration, ensuring regulatory alignment for plant modernization. Built for flush-mounted insertion and screw mounting, it simplifies wiring and reduces panel footprint while delivering a wide time range from 0.016 to 600 minutes. Operating at 230 V, it supports 10 A with a single NO contact, making it suitable for compact, reliable control in industrial applications.
Product Information
Extended Description
2CKA006410A0393 ABB: For time-programmed switching of electrical consumers. With control cover, without cover plate. Minimum timer time: 1 second. Maximum timer time: 9:59:59 hours.
Instructions and Manuals
DEBJE-6465_BA_ABB_DinA4-Online_chn
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw
Modular Components Included
Flush Mounted Insert with Control Element
Ambient Air Temperature
Operation 0 ... +35 °C
Application
Time switch
Number of Outputs
1
Minimum Switching Time
10.2 second [unit of time]
Time Range
0.016 ... 600 min
Rated Voltage (Ur)
230 V
Rated Current (In)
10 A
Rated Frequency (f)
50 Hz
Power Watt
2300 V·A
Number of Contacts NO
1
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-balance SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty | alpha | impuls
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur | alpha nea | alpha exclusive
Surface Finishing
Untreated | Matt
Material
Thermoplastic
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
49 mm
Product Net Weight
86.5 g
Built-In Depth (t2)
28.3 mm
Screen Size
1.68 in
E-Number (Finland)
2619353
E-Number (Sweden)
1815079
RoHS Information
Product Declaration.PDF [EN] 6465 U-101-500
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
62b80ed9-ce64-41c1-a998-37583c10e748 Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6465 U-101-500
ETIM 9
EC001594 - Time switch clock for domestic switching devices
Feature → Business Impact → Application: The timer's wide time range of 0.016 to 600 minutes enables precise control of cycle-driven processes, reducing idle energy and extending equipment life by avoiding premature start-ups. In practice, this translates to measurable energy savings and improved process stability for HVAC, lighting, and small motor drives in panel environments. Feature → Business Impact → Application: A 10 A rated supply with 230 V and a single NO contact delivers dependable actuation for one-channel loads, simplifying control logic and easing fault isolation in automation circuits. Application-wise, it suits compact automation panels for line start/stop sequences, heater cycles, and timer-based sequencing in manufacturing lines. Feature → Business Impact → Application: Flush-mounted installation with screw fastening reduces panel depth and wiring complexity, speeding installation and minimizing field errors. This supports quick retrofits in existing plants and cleaner integration with Platform 63, Busch-Duro 2000 SI, and Reflex SI ranges. Feature → Business Impact → Application: Compliance with CE, RoHS, REACH, and SCIP reduces regulatory risk and material traceability concerns, aligning with modern procurement standards and audits. Application: suitable for regulated environments requiring documented declarations and supplier transparency. Feature → Business Impact → Application: Built-in control element and online installation manuals streamline commissioning, enabling technicians to deploy time-switching quickly with fewer commissioning calls and lower total cost of ownership.
Get a Quick Quote for a ABB 2CKA006410A0393
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA006410A0393?
Enquire Now
FAQs
The timer insert is designed for flush mounting with screw fastening, enabling a low-profile, secure fit inside standard panels. The included modular design simplifies retrofits by fitting into existing ABB platforms and compatible enclosure layouts, reducing wiring complexity and speeding up installation while preserving panel integrity and accessibility for future maintenance.
This device operates at 230 V, 50 Hz, with a rated current of 10 A and a single normally open output. It functions as a time switch to control one channel, suitable for small motors, pumps, heaters, or lighting loads within its 10 A limit. It provides precise scheduling with a time range from 0.016 to 600 minutes.
The timer offers a minimum switching time of 10.2 seconds, ensuring smooth start/stop transitions for short duty cycles. The programmable time range spans from 0.016 to 600 minutes, enabling both rapid, short-duration control and longer, timed sequences for industrial processes and energy management.
Yes. The device carries CE and RoHS compliance, with REACH declarations and SCIP registration. Documentation includes the EU declaration of conformity and related material declarations, helping you meet regulatory requirements and pass compliance audits for modern industrial installations.
Common use cases include time-based motor and pump control, delayed start sequences for heating equipment, and lighting control in machine cells. Its compact form, 1 NO contact, and robust 230 V/10 A ratings make it ideal for panel-based automation where timing accuracy, ease of installation, and regulatory compliance are priorities.
