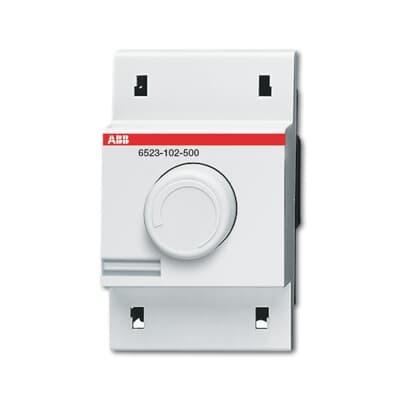

2CKA006512A0340
Part Number: 2CKA006512A0340
Product Information
Extended Description
2CKA006512A0340 ABB: With rotary control, two-way switch and soft-catch. Optimised for dimming of retrofit LED lamps (LEDi). For dimmable Retrofit-LEDs (LEDi). For dimmable Retrofit-LEDs (LEDi) with conventional or electronic transformers. For incandescent lamps, 230 V tungsten halogen lamps, low-voltage halogen lamps with conventional or electronic transformers and dimmable energy-saving halogen lamps. Mix operaton of LEDi with conventional loads possible. Via mode switch adjustable between leading edge control and trailing edge control. Low-noise level by MOSFET transistors. With electronic short-circuit protection. With electronic overload protection. With adjustable minimum brightness. Rated voltage: 230 V~, + 10% / - 10% Rated frequency: 50 Hz/60 Hz Nominal power: 2 - 100 W/VA (retrofit LED loads). Nominal power: 10 - 250 W/VA (non-LED loads).
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] 6523 U-102-500 6523-102-500 | Installation and Operating Instructions (.PDF) [EN] 6523 U-102-500 6523-102-500 | Installation and Operating Instructions (.PDF) [EN] 6523 U-102-500 6523-102-500
Mounting Type
DIN-Rail
Type of Fastening
Snapper Mounting
Ambient Air Temperature
Operation 0 ... +35 °C
Degree of Protection
IP20
Application
Dimmable Retrofit-LEDs (LEDi)
Actuator Type
Turn/push button
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Rated Voltage (Ur)
230 V
Rated Control Supply Voltage (Us)
220...240 V
Rated Frequency (f)
50 / 60 Hz
Load Type
Universal and LED Retrofit | LEDi | Incandescent lamp | Halogen lamp, high voltage | Halogen lamp, low voltage
Power Watt
2...250 V·A
Control Supply Voltage
220...240 V
Surface Finishing
Untreated | Matt
Material
Thermoplastic
RAL Number
Similar to RAL 7035
Width in Number of Modular Spacings
3.0
Product Net Width
53 mm
Product Net Height
85 mm
Product Net Depth / Length
73 mm
Product Net Weight
85 g
E-Number (Sweden)
1360574
RoHS Information
Product Declaration.PDF [EN] 6523-102-500
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
29c12a6d-60a3-4ae1-b2dd-1503c5f036f5 Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6523-102-500
ETIM 9
EC000025 - Dimmer
eClass
V11.0 : 27144014
