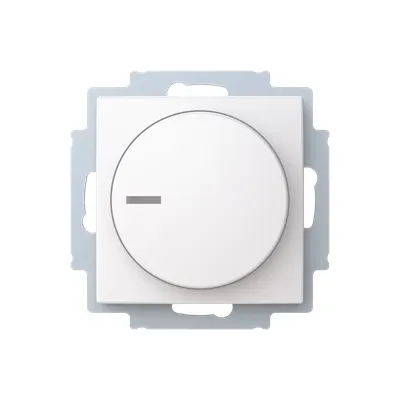

2CKA006512A0352
Part Number: 2CKA006512A0352
Product Information
Extended Description
2CKA006512A0352 ABB: Very small installation depth: < 20 mm Without claws. With rotary control, two-way switch and soft-catch. 2-wire connection (neutral conductor not required) Optimised for dimming of retrofit LED lamps (LEDi). For dimmable Retrofit-LEDs (LEDi). For dimmable Retrofit-LEDs (LEDi) with conventional or electronic transformers. For incandescent lamps, 230 V tungsten halogen lamps, low-voltage halogen lamps with conventional or electronic transformers and dimmable energy-saving halogen lamps. Mix operaton of LEDi with conventional loads possible. With manually adjustable operating mode: trailing / leading edge control. With adjustable minimum/maximum brightness. Low-noise level by MOSFET transistors. With electronic short-circuit protection. With electronic overload protection. Rated voltage: 230 V~, + 10% / - 10% Rated frequency: 50 Hz/60 Hz Nominal power: 2 - 100 W/VA (leading edge control) Nominal power: 2 - 400 W/VA (trailing edge control)
Instructions and Manuals
2CKA000073B9123 | 2CKA000073B9124 | 2CKA000073B9234 | 2CKA000073B9125
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw
Ambient Air Temperature
Operation 0 ... +35 °C
Degree of Protection
IP21
Actuator Type
Turn/push button
Rated Cross-Section
1 - Solid-Core 1 ... 2.5 mm²
Terminal Type
Screw Terminals
Rated Voltage (Ur)
207 ... 253 V
Rated Frequency (f)
50 / 60 Hz
Maximum Switching Power
400 W
Load Type
Universal and LED Retrofit | LEDi | Incandescent lamp | Halogen lamp, high voltage | Halogen lamp, low voltage
Power Consumption (@Pcons)
0 W
Control Supply Voltage
220 ... 240 V
Design Range
Saga
Surface Finishing
Glossy | Untreated
Material
Plastic | Thermoplastic
RAL Number
Similar to RAL 9003
Color
white
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
45 mm
Product Net Weight
56.3 g
Built-In Depth (t2)
20 mm
Replacement Product ID (NEW)
2CKA006512A0356
E-Number (Finland)
2619419
E-Number (Sweden)
1360900
RoHS Information
RoHS - Product Declaration (.PDF) [EN] 6523 UC-916-510
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6523 UC-916-510
ETIM 9
EC000025 - Dimmer
eClass
V11.0 : 27144014
