2CKA006512A0355
Part Number: 2CKA006512A0355
Product Information
Extended Description

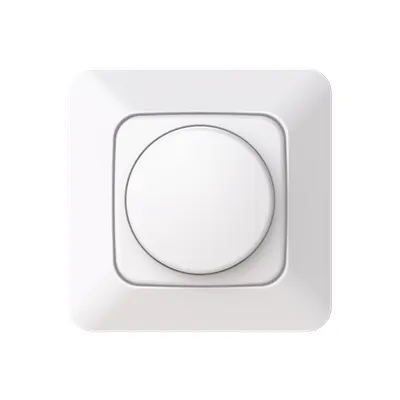

2CKA006512A0355 ABB: LED dimmer With rotary control.
Two-way switch and soft-catch.
With N-terminal.
2- or 3-wire connection (neutral conductor not required).
Neutral conductor optionally connectable (recommended for the connection of low loads < 10 W/VA).
Without claws.
Very low installation depth: < 20 mm Without claws.
Optimised for dimming of retrofit LED lamps (LEDi).
For dimmable Retrofit-LEDs (LEDi).
For dimmable Retrofit-LEDs (LEDi) with conventional or electronic transformers.
For incandescent lamps, 230 V tungsten halogen lamps, low-voltage halogen lamps with conventional or electronic transformers and dimmable energy-saving halogen lamps.
Mix operaton of LEDi with conventional loads possible.
With manually adjustable operating mode: trailing / leading edge control.
With adjustable minimum/maximum brightness.
Low-noise level by MOSFET transistors.
With electronic short-circuit protection. With electronic overload protection.
With Jussi cover plate and 1gang frame.
Rated voltage: 230 V~, + 10% / - 10% Rated frequency: 50 Hz/60 Hz
Nominal power (L): 2 - 100 W/VA (leading-edge control)
Nominal power (R, C): 10 - 360 W/VA (trailing-edge control)
Nominal power (LEDi): 2 - 100 W/VA (leading-edge control)
Nominal power (LEDi): 2 - 200 W/VA (trailing-edge control)
Instructions and Manuals
Installation and Operating Instructions (.PDF) [XX] 6523_URxx-104-500
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw
Ambient Air Temperature
Operation 0 ... +35 °C
Degree of Protection
IP21
Actuator Type
Turn/push button
Rated Cross-Section
1 - Solid-Core 1 ... 2.5 mm²
Terminal Type
Screw Terminals
Rated Voltage (Ur)
230 V
Rated Frequency (f)
50 / 60 Hz
Maximum Switching Power
360 W | Halogen Low Voltage Lamps with Electronical Transformers (Capacitive Loads) 200 V·A | Halogen Low Voltage Lamps with Magnetic Transformers (Inductive Loads) 100 V·A | Incandescent Lamp or Halogen High Voltage Lamps 360 W | LEDi 200 V·A
Load Type
Universal and LED Retrofit | LEDi | Incandescent lamp | Halogen lamp, high voltage | Halogen lamp, low voltage
Power Consumption (@Pcons)
0 W
Surface Finishing
Glossy | Untreated
Material
Plastic | Thermoplastic
RAL Number
Similar to RAL 9010
Color
white
Product Net Width
85 mm
Product Net Height
85 mm
Product Net Depth / Length
44 mm
Product Net Weight
82.5 g
Built-In Depth (t2)
20 mm
Replaced Product ID (OLD)
2CKA006512A0346
E-Number (Finland)
2619635
E-Number (Norway)
1471379
RoHS Information
RoHS - Product Declaration (.PDF) [EN] 6523 URJGL-214-104
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6523 URJGL-214-104
ETIM 9
EC000025 - Dimmer
eClass
V11.0 : 27144014
