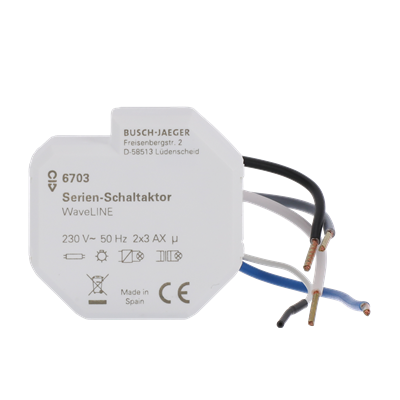

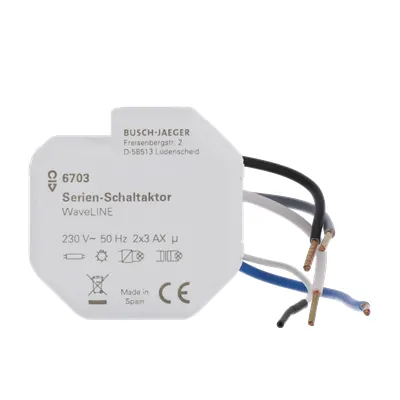

2CKA006700A0028
Part Number: 2CKA006700A0028
Product Information
Extended Description
2CKA006700A0028 ABB: For wireless switching of electrical loads. For operation mode 2gang switch, 2 separate outputs. For operation mode timer: output 1 (eg lighting), output 2: ON/Off delay in dependence of output 1 (eg fan control). For functions: ON/OFF and light scene control. For wall mounted transmitter Waveline 6731-xxx, 6732-xxx und 6733-xxx. For remote control WaveLINE 6780. ON/OFF delay output 2: 2 min. / 30 s. Repeater function can be activated for extended range. For universal attachment or installation. 3 wire connection (neutral conductor required). For installation in (deep) flush-mounted boxes to German Standard DIN 49073. Controllable up to 32 transmission addresses. Send/receive frequency: 868 MHz. Free-field range: approx. 100 m.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [DE] 6703
Mounting Type
Flush Mounted
Type of Fastening
Clamp
Modular Components Included
Complete Device
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Number of Outputs
2
Product Range
WaveLINE
Transmission Standard
Wireless
Rated Voltage (Ur)
230 V
Rated Current (In)
3 A
Frequency (f)
868 MHZ Hz
Rated Frequency (f)
50 Hz
Load Type
Universal and LED Retrofit | LEDi/CFLi | Incandescent lamp | Halogen lamp, high voltage | Halogen lamp, low voltage | Fluorescent lamp
Surface Finishing
Untreated | Matt
Material
Thermoplastic
Color
studio white
Product Net Width
48.5 mm
Product Net Height
47.5 mm
Product Net Depth / Length
22.5 mm
Product Net Weight
42 g
Built-In Depth (t2)
25 mm
RoHS Information
Product Declaration.PDF [EN] 6703
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6703
ETIM 9
EC001588 - Electronic switch
eClass
V11.0 : 27144054
