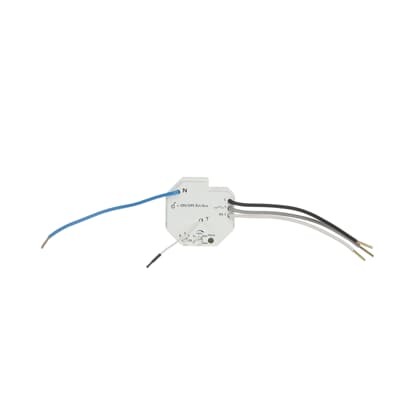

2CKA006700A0039
Part Number: 2CKA006700A0039
Product Information
Extended Description
2CKA006700A0039 ABB: For wireless switching of electrical loads. Functions via radio control: ON/OFF, timer and light scene control. Functions via the extension unit: ON/OFF, timer and sending a radio control telegram. Operation via conventional push button (2020 US/2021/6 UK) possible. Actuation of the extension unit (via conventional push-button) causes the output to switch and a radio control telegram to be sent. Actuation of extension unit in ON/OFF function: Alternate sending of an ON/OFF telegram. Actuation of extension unit in timer function: Sending of an ON telegram. For Busch-Watchdog WaveLINE. For wall mounted transmitter Waveline 6731-xxx, 6732-xxx und 6733-xxx. For remote control WaveLINE 6780. Switch-off delay: Adjustable to 5 seconds, 1-5-15 minutes. Repeater function can be activated for extended range. For universal attachment or installation. 3 wire connection (neutral conductor required). For installation in (deep) flush-mounted boxes to German Standard DIN 49073. Controllable up to 32 transmission addresses. Send/receive frequency: 868 MHz. Free-field range: approx. 100 m.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] 6701-101
Mounting Type
Flush Mounted
Type of Fastening
Clamp
Modular Components Included
Complete Device
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Number of Outputs
1
Product Range
WaveLINE
Transmission Standard
Wireless
Rated Voltage (Ur)
230 V
Rated Current (In)
10 A
Frequency (f)
868 MHZ Hz
Rated Frequency (f)
50 Hz
Load Type
Universal and LED Retrofit | LEDi/CFLi | Incandescent lamp | Halogen lamp, high voltage | Halogen lamp, low voltage | Fluorescent lamp
Surface Finishing
Untreated | Matt
Material
Thermoplastic
Color
studio white
Product Net Width
0.12 m
Product Net Height
0.517 m
Product Net Depth / Length
0.16 m
Product Net Weight
66 g
Built-In Depth (t2)
25 mm
RoHS Information
Product Declaration.PDF [EN] 6701-101
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6701-101
ETIM 9
EC001588 - Electronic switch
eClass
V11.0 : 27144054
