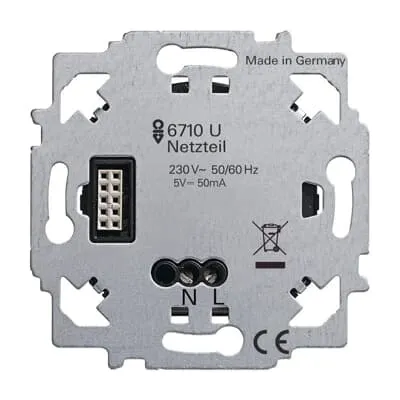

2CKA006710A0001
Part Number: 2CKA006710A0001
Product Information
Extended Description
2CKA006710A0001 ABB: With electronic short-circuit protection. With electronic overload protection. For ZigBee Light Link control element 6735-xxx, 6736-xxx and 6737-xxx. Without control cover.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] 6710
Mounting Type
Flush Mounted
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Transmission Standard
Wireless
Terminal Type
Screwless Terminals
Rated Voltage (Ur)
230 V
Secondary Voltage
5 V
Auxiliary Voltage AC/DC
230 V AC/DC
Input Voltage (Uin)
207... 253 V
Output Voltage Type
DC
Output Voltage (Uout)
5 V
Rated Current (In)
50 A
Rated Frequency (f)
50 / 60 Hz
Power Loss
0.5 W
Design Range
Platform 63 | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty
Design Range Variant
future | future linear | Busch-axcent | Busch-axcent pur
Product Net Width
0.072 m
Product Net Height
0.09 m
Product Net Depth / Length
0.065 m
Product Net Weight
0.112 kg
Built-In Depth (t2)
32 mm
RoHS Information
Product Declaration.PDF [EN] 6710 U
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20230825
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6710 U
ETIM 9
EC000018 - Insert/cover for communication technology
eClass
V11.0 : 27144049
