2CKA006710A0002
Part Number: 2CKA006710A0002
Product Information
Extended Description

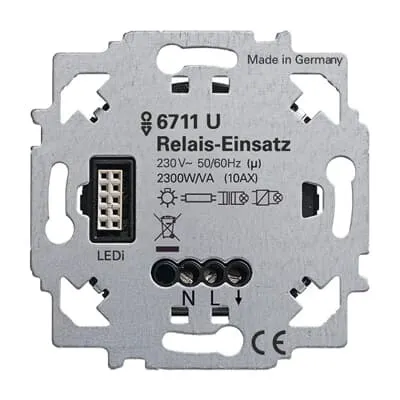

2CKA006710A0002 ABB: 3 wire connection (neutral conductor required). For switching retrofit LED lamps (LEDi). For switching incandescent lamps, 230 V tungsten halogen lamps, fluorescent lamps and low-voltage halogen lamps, that are actuated via transformers. Without control cover. For ZigBee Light Link control element 6735-xxx, 6736-xxx and 6737-xxx.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] 6711
Mounting Type
Flush Mounted
Modular Components Included
Flush Mounted Insert with Mounting Plate
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Number of Outputs
1
Transmission Standard
Wireless
Rated Voltage (Ur)
230 V
Rated Current (In)
10 A
Rated Frequency (f)
50 / 60 Hz
Minimum Switching Capacity
0...2300 W
Load Type
Universal and LED Retrofit | LEDi/CFLi | Incandescent lamp | Halogen lamp, high voltage | Halogen lamp, low voltage | Fluorescent lamp
Power Loss
0.5 W
Design Range
Platform 63 | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty
Design Range Variant
future | future linear | Busch-axcent | Busch-axcent pur
Surface Finishing
Untreated | Matt
Material
Thermoplastic
Color
grey
Product Net Width
0.038 m
Product Net Height
0.1 m
Product Net Depth / Length
0.079 m
Product Net Weight
0.124 kg
Built-In Depth (t2)
29 mm
RoHS Information
Product Declaration.PDF [EN] 6711 U
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20230825
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6711 U
ETIM 9
EC001588 - Electronic switch
eClass
V11.0 : 27144054
