2CKA006710A0025
Part Number: 2CKA006710A0025
Product Information
Extended Description

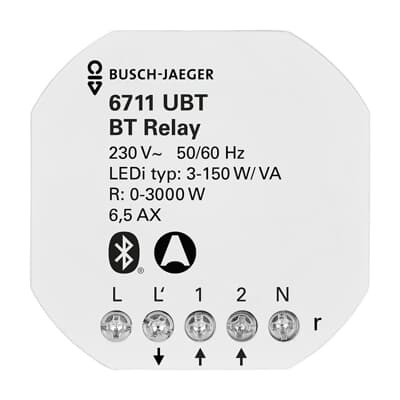

2CKA006710A0025 ABB: Smart relay pill for Bluetooth Low Energy (BLE) applications in Casambi eco systems
- Relay pill can be controlled by BLE switch/smart switches, e.g., 6716 UBT or via Casambi app
- Can also be operated by using conventional push buttons (2020 US, 2012/6 UK)
- For switching 230 V~ loads
- Maximum functional reliability through Bluetooth mesh technology
- Depending on the ecosystem, the wireless range is automatically extended via mains-powered BT mesh devices (repeater function)
- Nominal voltage: 230 V~, +10% / -10%
- Rated Frequency: 50Hz / 60Hz
- Outputs: 1 NO contact, non-floating
- Resistive load, rated Power: 3000W / Rated current: 6.5AX
- LEDi, rated power: 150W/VA
- Degree of protection device: IP 20
- Temperature range device: -5 °C - 45 °C
- Storage temperature range: -25°C - 70°C
- Transport temperature range: -25 °C - 70 °C
- Dimensions (H x W x D): 48mm x 48mm x 20mm
Instructions and Manuals
Installation and Operating Instructions (.PDF) [XX] 6711 UBT
Mounting Type
Flush Mounted
Type of Fastening
Clamp
Modular Components Included
Complete Device
Degree of Protection
IP20
Application
Bluetooth Low Energy (BLE)
Number of Outputs
1
Compatible Bus Systems
Casambi
Transmission Standard
Wireless | Bluetooth
Rated Voltage (Ur)
230 V
Frequency (f)
2400000000 Hz
Rated Frequency (f)
50/60 Hz
Load Type
Universal and LED Retrofit | LEDi/CFLi | Incandescent lamp | Halogen lamp, high voltage | Halogen lamp, low voltage | Fluorescent lamp
Surface Finishing
Untreated | Matt
Material
Thermoplastic
Color
white
Product Net Width
47.9 mm
Product Net Height
19.9 mm
Product Net Depth / Length
47.9 mm
Product Net Weight
45.76 g
E-Number (Finland)
2625001
RoHS Information
RoHS - Product Declaration (.PDF) [EN] 6711 UBT
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
220509c3-1da1-4324-b677-9303178fa98a Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6711 UBT
ETIM 9
EC001588 - Electronic switch
eClass
V11.0 : 27144054
