ABB 2CKA006710A0032 Switch Actuator - free@home wireless
Part Number: 2CKA006710A0032
Quick Summary
ABB 2CKA006710A0032 Switch Actuator is a 230 V AC wireless device enabling seamless lighting control within ABB-free@home ecosystems. Engineers often face costly rewiring; this flush-mounted actuator simplifies installation with a 3-wire connection (neutral required) and plug clamps, speeding commissioning. It carries CE, RoHS, and REACH certifications and IP20 protection for indoor use, aligning with safety and environmental standards. Operation is possible via ABB-free@home wireless, ABB-flexTronics, and Bluetooth programming through the Next App or System Access Point web interface, enabling scalable room control. The result is faster ROI, reduced energy waste, and easier maintenance for commercial and residential projects.
Product Information
Extended Description

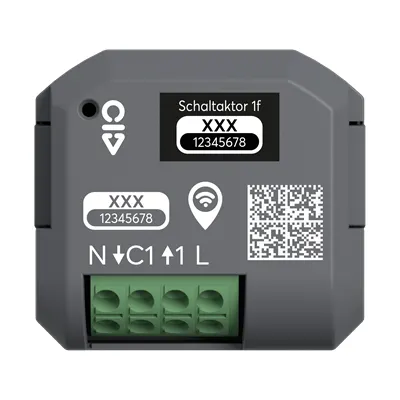

2CKA006710A0032 ABB: Flush mounted actuator wireless for switching of lighting systems.
Operation in ABB-flexTronics® wireless (device control) or networking of up to 32 devices (room con-trol).
Integration in ABB-free@home® wireless with System Access Point up to 150 devices.
3 wire connection (neutral conductor required).
With plug clamps.
With extension input.
Operation also possible via conventional push buttons.
Remote operation via Bluetooth and smartphone/tablet app.
Programming via Bluetooth with the ABB-free@home® Next App or the web interface of the System Access Point.
Instructions and Manuals
Installation and Operating instructions (.PDF) [xx] 62811 U-WL-xxx _62811/10 U-WL-xxx
Mounting Type
Flush Mounted
Modular Components Included
Complete Device
Ambient Air Temperature
Operation -25 ... +55 °C
Degree of Protection
IP20
Number of Outputs
1
Number of LEDs
1
Maximum Number of Switching Outputs
1
Number of Inputs
1
Compatible Bus Systems
free@home wireless
Product Range
flexTronics Wireless | free@home Wireless | free@home
Transmission Standard
Wireless | Bluetooth
Manual Operation
No
Suitable for C-Load
Yes
Terminal Type
Screwless Terminals
Rated Voltage (Ur)
230 V AC
Voltage Range
230 V AC
Rated Current (In)
13 A
Maximum Switching Current
13 A
Rated Frequency (f)
50 Hz
Maximum Switching Power
Halogen Low Voltage Lamps with Electronical Transformers (Capacitive Loads) 2300 V·A | Halogen Low Voltage Lamps with Magnetic Transformers (Inductive Loads) 2300 V·A | Incandescent Lamp or Halogen High Voltage Lamps 3000 W | LEDi 300 V·A
Load Type
Universal and LED Retrofit | LEDi/CFLi | Incandescent lamp | Halogen lamp, high voltage | Halogen lamp, low voltage | Fluorescent lamp
Power Loss
0.3 W
Color
grey / anthracite
Product Net Width
48 mm
Product Net Height
43.8 mm
Product Net Depth / Length
23 mm
Product Net Weight
34.6 g
Built-In Depth (t2)
23 mm
RoHS Information
RoHS - Product Declaration (.PDF) [EN] 62831 U-WL
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
6. Small IT and Telecommunication Equipment (No External Dimension More Than 50 cm)
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 62811 U-WL
ETIM 9
EC001097 - Switch actuator for bus system
eClass
V11.0 : 27143125
UNSPSC
31251516
IDEA Granular Category Code (IGCC)
3268 >> Switch actuator
Feature: Flush-mounted wireless actuator for lighting control. Business Impact: Enables unobtrusive installation and rapid deployment in ABB-free@home networks. Application: Retrofit or new-build lighting control in homes and commercial spaces. Feature: Compatible with ABB-free@home wireless and flexTronics wireless. Business Impact: Allows scalable device networking up to 150 devices and comprehensive room control. Application: Create multi-room scenes and centralized energy management. Feature: 3-wire connection with neutral required and plug clamps. Business Impact: Reliable power delivery with familiar wiring, reducing wiring errors. Application: Install in existing circuits without major rewiring. Feature: Bluetooth programming and web interface. Business Impact: Simplifies field programming and remote commissioning, cutting site time. Application: Technicians configure via ABB-free@home Next App or System Access Point. Feature: Rated 13 A at 230 V AC with IP20 protection. Business Impact: Supports a wide range of loads (LED, incandescent, halogen) while maintaining indoor safety. Application: Lighting control for LEDs, CFLs, and traditional lamps in indoor environments.
Get a Quick Quote for a ABB 2CKA006710A0032
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA006710A0032?
Enquire Now
FAQs
The actuator is flush-mounted and uses a 3-wire connection with a neutral conductor required, featuring plug clamps for straightforward wiring. It integrates with ABB-free@home wireless and can be commissioned via Bluetooth or the System Access Point web interface, making it compatible with existing lighting circuits and retrofit projects in residential or commercial installations.
This device operates at 230 V AC with a rated current and maximum switching current of 13 A. It supports a wide range of loads, including LED retrofit lamps, incandescent, and halogen lamps, as well as capacitive and inductive loads within the 13 A limit, ensuring reliable switching for most room lighting scenarios.
Yes. The load type includes universal and LED retrofit options (LEDi/CFLi), incandescent and halogen lamps, and fluorescent lamps. Combined with free@home wireless and room-control capabilities, it is suitable for office, conference rooms, and other commercial spaces needing scalable, energy-efficient lighting control.
The actuator ships with CE declarations of conformity, RoHS compliance, REACH documentation, and a WEEE category designation for safe end-of-life handling. It also carries IP20 protection for indoor environments, aligning with safety and environmental regulations applicable to commercial installations.
Key benefits include remote operation via Bluetooth and the ABB web interface, faster commissioning, and scalable device networking for energy management. This translates to faster ROI through energy savings, reduced wiring costs, and simpler ongoing maintenance in multi-room setups.
