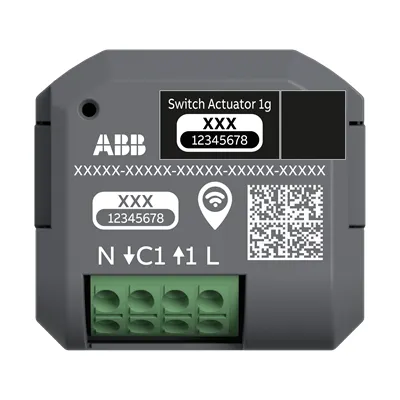

ABB 2CKA006710A0034 Switch Actuator 230 V AC free@home wireless - IP20
Part Number: 2CKA006710A0034
Quick Summary
ABB 2CKA006710A0034 Switch Actuator 230 V AC free@home wireless enables wireless control of lighting within ABB-free@home systems. It helps solve wiring chaos and retrofit challenges by delivering seamless integration, remote access, and room-level control across buildings. This device conforms to CE, RoHS, and REACH requirements and carries IP20 protection, ensuring reliability in indoor environments. Designed for both new builds and retrofit projects in offices, hotels, and light industrial settings, it also supports Bluetooth programming and scalable System Access Point setups, delivering practical business value. Its flush-mount form, plug clamps, and compatibility with ABB-flexTronics wireless simplify installation, reduce field labor, and lower lifecycle costs for installers and facilities managers.
Product Information
Extended Description
2CKA006710A0034 ABB: Flush mounted actuator wireless for switching of lighting systems.
Operation in ABB-flexTronics® wireless (device control) or networking of up to 32 devices (room con-trol).
Integration in ABB-free@home® wireless with System Access Point up to 150 devices.
3 wire connection (neutral conductor required).
With plug clamps.
With extension input.
Operation also possible via conventional push buttons.
Remote operation via Bluetooth and smartphone/tablet app.
Programming via Bluetooth with the ABB-free@home® Next App or the web interface of the System Access Point.
Instructions and Manuals
Installation and Operating instructions (.PDF) [xx] 62811 U-WL-xxx _62811/10 U-WL-xxx
Mounting Type
Flush Mounted
Modular Components Included
Complete Device
Ambient Air Temperature
Operation -25 ... +55 °C
Degree of Protection
IP20
Number of Outputs
1
Number of LEDs
1
Maximum Number of Switching Outputs
1
Number of Inputs
1
Compatible Bus Systems
free@home wireless
Product Range
flexTronics Wireless | free@home Wireless | free@home
Transmission Standard
Wireless | Bluetooth
Manual Operation
No
Suitable for C-Load
Yes
Terminal Type
Screwless Terminals
Rated Voltage (Ur)
230 V AC
Voltage Range
230 V AC
Rated Current (In)
13 A
Maximum Switching Current
13 A
Rated Frequency (f)
50 Hz
Maximum Switching Power
Halogen Low Voltage Lamps with Electronical Transformers (Capacitive Loads) 2300 V·A | Halogen Low Voltage Lamps with Magnetic Transformers (Inductive Loads) 2300 V·A | Incandescent Lamp or Halogen High Voltage Lamps 3000 W | LEDi 300 V·A
Load Type
Universal and LED Retrofit | LEDi/CFLi | Incandescent lamp | Halogen lamp, high voltage | Halogen lamp, low voltage | Fluorescent lamp
Power Loss
0.3 W
Color
grey / anthracite
Product Net Width
48 mm
Product Net Height
43.8 mm
Product Net Depth / Length
23 mm
Product Net Weight
23.395 g
Built-In Depth (t2)
23 mm
E-Number (Finland)
2625060
RoHS Information
RoHS - Product Declaration (.PDF) [EN] 62831 U-WL-500
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
6. Small IT and Telecommunication Equipment (No External Dimension More Than 50 cm)
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 62811 U-WL-500
ETIM 9
EC001097 - Switch actuator for bus system
eClass
V11.0 : 27143125
UNSPSC
31251516
IDEA Granular Category Code (IGCC)
3268 >> Switch actuator
Feature → Business Impact → Application: Wireless control with ABB-free@home wireless enables installation without heavy rewiring, reducing labor time and on-site disruption for retrofits in commercial spaces. This directly improves project timelines and energy management effectiveness in office buildings. Feature → Compatibility and scalability → The device supports ABB-flexTronics wireless device control and room control for up to 32 devices, plus System Access Point integration for up to 150 devices, enabling phased deployments in mid-size facilities. Application: Multi-room lighting control in hotels and campuses with centralized management. Feature → 230 V AC, 13 A rating → Reliable operation for a broad range of loads including LED retrofit, incandescent, and halogen with both capacitive and inductive loads, delivering predictable performance and reduced failure risk. Application: Lighting circuits in conference rooms and common areas. Feature → Flush-mounted housing with screwless terminals and plug clamps → Neat aesthetics and fast wiring, minimizing installation time and reducing miswiring risk. Application: New-build and retrofit projects where aesthetics and speed matter. Feature → Bluetooth programming and ABB-free@home Next App/web interface → Easy configuration and remote maintenance, lowering on-site visits and accelerating commissioning. Application: Technician and facility teams provisioning and updating systems. Feature → Environmental and safety compliance → IP20, RoHS, REACH declarations and CE conformity guard regulatory alignment and end-user safety. Application: Indoor installations in occupied spaces with compliance requirements. Feature → Remote operation plus push-button compatibility (extended description) → Flexible control methods for users, maintenance staff, and accessibility needs, reducing training time and boosting user adoption. Application: Residential and commercial applications requiring varied input methods.
Get a Quick Quote for a ABB 2CKA006710A0034
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA006710A0034?
Enquire Now
FAQs
The actuator is flush-mounted with screwless terminals and requires a 3-wire connection (neutral). It is compatible with free@home wireless and ABB-flexTronics wireless, and can be programmed via Bluetooth using the ABB-free@home Next App or the System Access Point web interface. For retrofit scenarios, plan for neutral availability and ensure the System Access Point supports the intended device count.
Rated at 230 V AC and 50 Hz with a maximum switching current of 13 A, the actuator handles a range of loads: capacitive loads such as LED retrofit and LEDi CFLs, inductive loads like halogen low-voltage lamps with magnetic transformers, and incandescent/halogen high-voltage lamps. Maximum switching power is 2300 VA for capacitive/inductive loads and 3000 W for incandescent/halogen high voltage.
Yes. It supports room control for up to 32 devices in ABB-flexTronics wireless and scales to up to 150 devices when used with System Access Point, making it suitable for mid-size offices, hotel suites, and light commercial spaces that require centralized wireless lighting control.
The product complies with CE and RoHS requirements, with a REACH declaration in place. It has an IP20 protection rating for indoor use, and a CE Declaration of Conformity is provided to verify conformity with applicable European directives.
With Bluetooth-based programming and ongoing support for 2 years of Cyber Security Software updates, maintenance visits are reduced. The device enables energy-efficient lighting control, scalable deployment, and faster commissioning, contributing to lower installation costs and ongoing operational savings over the system’s lifecycle.
