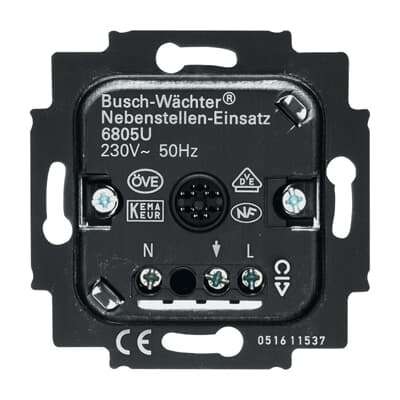

2CKA006800A1468
Part Number: 2CKA006800A1468
Product Information
Extended Description
2CKA006800A1468 ABB: 3 wire connection (neutral conductor required). For extending Busch-Watchdog 180 flush-mounted and Busch-Watchdog Presence tech installations. For combination with relay insert 6401 U-102 and 6402 U. For combination with MOS-Fet insert 6804 U-101. For combination with Dimmer insert 6593 U and 6550 U-101. For Busch-Watchdog 180 flush-mounted Sensor Standard 6810-21x-101. For Busch-Watchdog 180 flush-mounted sensor Comfort II 6800-xxx-104 and 6800-xxx-104M. For Busch-Watchdog Presence tech 6813-xxx-101 und 6813/11-xxx.
Mounting Type
Flush Mounted
Ambient Air Temperature
Operation 0...35 °C
Rated Voltage (Ur)
230 V
Rated Frequency (f)
50 Hz
Product Net Width
92 mm
Product Net Height
58 mm
Product Net Depth / Length
78 mm
Product Net Weight
83 g
Replacement Product ID (NEW)
2CKA006800A3050
RoHS Information
Product Declaration.PDF [EN] 6805 U
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6805 U
