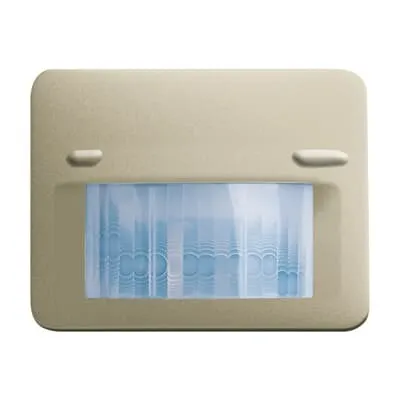

2CKA006800A2119
Part Number: 2CKA006800A2119
Product Information
Extended Description
2CKA006800A2119 ABB: For automatic switching of devices dependent on motion and brightness. For down-to-ground detection. For relay inserts 6401 U-102, 6402 U and 6812 U-101. For MOS-Fet insert 6804 U-101. For Dimmer insert 6593 U. For extension insert 6805 U. With integrated selector switch for ON-AUTOMATIC-OFF (lockable). Soft phase-out: In combination with the 6593 U (mode of operation: Soft OFF) the illumination is dimmed down within 60 sec and switched off. Surveillance density: 28 sectors with 112 switching segments. Switch-off delay: 10 sec to 30 min or short-time pulse 1 sec adjustable.
Instructions and Manuals
Manual (.PDF) [DE] 6810-21x-101; 6800-3x-102C; 6800-XXX-104(M)
Mounting Type
Flush Mounted
Mounting Height
Minimum 1.2 m | Optimum 0.8 ... 1.2 m
Modular Components Included
Cover Plate
Ambient Air Temperature
Operation 0 ... +35 °C
Degree of Protection
IP20
Minimum Switching Time
Switch-On 10 second [unit of time]
Sensor Detection Range
Horizontal 0 ... 180 °
Design Range
alpha
Design Range Variant
alpha nea | alpha exclusive
Material
Thermoplastic
Color
palladium
Product Net Width
70 mm
Product Net Height
54 mm
Product Net Depth / Length
39 mm
Product Net Weight
37.5 g
Dimension Diagram
Dimension drawing [EN] m_6800-24-104
RoHS Information
Product Declaration.PDF [EN] 6800-260-104M
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6800-260-104M
ETIM 9
EC000138 - Sensor element for movement sensor
eClass
V11.0 : 27144008
