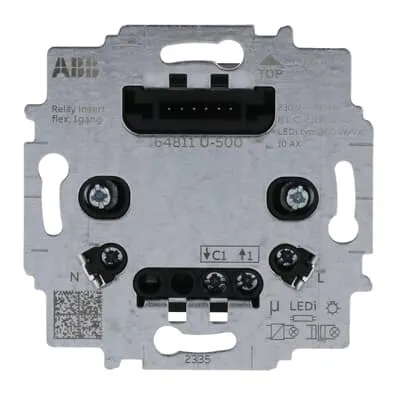

ABB 2CKA006800A3042 Relay insert - CE
Part Number: 2CKA006800A3042
Quick Summary
Relay insert 230 V enables compact switch control for flush‑mounted lighting applications. Engineers often struggle with wiring complexity and slow commissioning in modular control devices. This model carries CE conformity, RoHS information, and REACH declarations, providing traceability and compliance for regulated deployments. Designed for flexTronics platforms and compatible with extension inserts like 64891 U-500, it enables scalable configurations from one gang to larger control schemes. With 230 V and 10 A ratings, 50 Hz operation, and a compact 25 mm built‑in depth, it delivers dependable lighting switching while minimizing cabinet clutter and maintenance.
Product Information
Extended Description
2CKA006800A3042 ABB: 3 wire connection (neutral conductor required).
For switching lighting systems.
Operation in 1gang 2way installations via push button input.
Operation also possible via conventional push buttons (2020 US-500).
Without control unit.
For control element flex, 1gang, 64711-500.
For control element flex, 1gang, wireless, 62711-WL-500.
For control element flex, 2gang, 64721-500.
For control element flex, 2gang, wireless, 62721-WL-500.
For ABB Comfort switch flex control element 64765-...-500.
For ABB Watchdog 180 flex sensors 6476x-…-500 .
For ABB Watchdog 180 flex sensors, wireless, 6276x-...-WL--500.
For ABB presence detector flex sensors 6475x-…-500.
Combinable with extension insert, 64891 U-500.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [XX] 64811 | Installation and Operating Instructions (.PDF) [XX] 64811 | Installation and Operating Instructions (.PDF) [XX] 64811 | Installation and Operating Instructions (.PDF) [XX] 64811
Instructions and Manuals (Part 2)
Open source licenses (.PDF) [EN] Busch-flexTronics CWA devices
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw | Mounting with Claw
Modular Components Included
Flush Mounted Insert with Mounting Plate
Ambient Air Temperature
Operation -25 ... +55 °C
Number of Outputs
1
Number of Gangs
1
Number of Inputs
1
Product Range
flexTronics | flexTronics Wireless | free@home Wireless | free@home
Connection Type
Pin
Terminal Type
Screw Terminals
Rated Voltage (Ur)
230 V
Rated Current (In)
10 A
Rated Frequency (f)
50 Hz
Maximum Switching Power
Fluorescent Lamp 2300 V·A | Halogen Low Voltage Lamps with Electronical Transformers (Capacitive Loads) 2300 V·A | Halogen Low Voltage Lamps with Magnetic Transformers (Inductive Loads) 2300 V·A | Incandescent Lamp or Halogen High Voltage Lamps 2300 W | LEDi 300 V·A
Load Type
Universal and LED Retrofit | LEDi/CFLi | Incandescent lamp | Halogen lamp, high voltage | Halogen lamp, low voltage | Fluorescent lamp
Power Loss
0.3 W
Number of Contacts NO
1
Design Range
Platform 63 | Busch-balance SI | Reflex SI | Busch-Duro 2000 SI | Busch-art linear | future linear | Busch-axcent | Pure Stainless Steel | solo | carat | Busch-Dynasty | Trevion
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur
Product Net Width
0.14 m
Product Net Height
0.227 m
Product Net Depth / Length
0.181 m
Product Net Weight
148.5 g
Built-In Depth (t2)
25 mm
Replaced Product ID (OLD)
2CKA006200A0098
E-Number (Finland)
2619440
E-Number (Norway)
1416510
E-Number (Sweden)
1301520
Environmental Product Declaration - EPD
Environmental Product Declaration (.PDF) [EN] RELAY INSERT FLEX
RoHS Information
Product Declaration.PDF [EN] 64811 U-500
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
2CKA100000E4275
ETIM 9
EC001588 - Electronic switch
eClass
V11.0 : 27144054
Feature: 230 V, 10 A, 50 Hz rating with 1 Normally Open (NO) contact; Benefit: supports standard lighting loads with reliable switching, enabling straightforward integration into commercial and industrial lighting circuits; Application: ideal for lighting control in flush-mounted installations using the flexTronics ecosystem. Feature: 1 input, 1 output, screw terminals; Benefit: simplifies field wiring and reduces installation time, improving project margins; Application: quick replacement in retrofit programs. Feature: Flush-mounted mounting with a dedicated mounting plate; Benefit: space-saving installation that lowers panel depth and cabling complexity; Application: enclosure-friendly deployments in wall boxes. Feature: Low power loss of 0.3 W; Benefit: minimizes heat buildup and energy waste in control panels; Application: continuous operation in lighting control. Feature: Expanded compatibility with control elements and extensions (64891 U-500); Benefit: scalable configurations from 1 gang to multi-gang layouts; Application: seamless integration with ABB comfort switches and detectors. Feature: Compliance with CE, RoHS, REACH; Benefit: regulatory confidence and environmental responsibility; Application: suitable for regulated markets and large-scale deployments. Feature: Environmentally robust (-25 to +55 C); Benefit: reliable operation across varied industrial environments; Application: industrial cabinets, commercial buildings, and retrofit projects.
Get a Quick Quote for a ABB 2CKA006800A3042
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA006800A3042?
Enquire Now
FAQs
Yes. The relay insert is designed for flush-mounted, 1 gang installations within the flexTronics family and supports compatible extension inserts such as 64891 U-500. It uses screw terminals for straightforward field wiring and can be combined with related ABB control elements to extend functionality without modifying the mounting footprint.
The device is rated for 230 V and 10 A at 50 Hz, with a single normally open contact. It supports universal and LED retrofit loads, along with incandescent and halogen lamps, up to 2300 VA depending on the load type. Power loss is minimal at 0.3 W, aiding energy efficiency in lighting control applications.
Yes. The product sits within the flexTronics | flexTronics Wireless | free@home portfolio, enabling integration with wireless and wired control elements. It supports 1 gang, 1 way operation via push-button inputs and is compatible with wireless sensors and ABB comfort switch modules for scalable lighting control solutions.
The relay insert carries CE conformity with RoHS and REACH declarations. It aligns with environmental and safety regulations, and ABB also provides a Declaration of Conformity (CE) for traceability. WEEE category is 5 (Small Equipment), supporting proper end-of-life disposal.
The device offers space-saving flush-mounted installation, straightforward screw-terminal wiring, and compatibility with extension inserts for scalable setups. Low power loss reduces heat and energy costs, while CE/RoHS/REACH compliance mitigates regulatory risk. Quick replacements and modular design shorten commissioning times and lower lifecycle maintenance costs.
