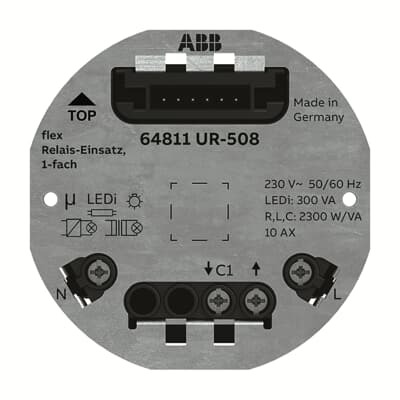

ABB 2CKA006800A3043 Relay Insert - 230V, 1 NO
Part Number: 2CKA006800A3043
Quick Summary
Relay insert 230 V from ABB enables compact control of lighting systems in 1-gang, 2-way installations. If you’re wrestling with wiring density and retrofit compatibility, this module simplifies panel layouts and reduces install time. It references RoHS, REACH, and WEEE for regulatory compliance, and aligns with data standards such as ETIM 9 EC001588 and eClass V11.0 to ensure accurate parts information. The unit is compatible with ABB Comfort switch flex control element 64765-3..-508 and Watchdog 180 flex sensors, enabling scalable integration with flexTronics and free@home wireless ecosystems. In practice, you gain a tidy, reliable interface for universal loads, a reduced mechanical footprint, and a clear path to future upgrades in smart lighting projects.
Product Information
Extended Description
2CKA006800A3043 ABB: 3 wire connection (neutral conductor required).
For switching lighting systems.
Operation in 1gang 2way installations via push button input.
Operation also possible via conventional push buttons.
Without control unit.
For ABB Comfort switch flex control element 64765-3..-508 .
For ABB Watchdog 180 flex sensors 6476x-3-508 .
For ABB Watchdog 180 flex sensors, wireless, 6276x-3..-WL-508.
For ABB presence detector flex sensors 6475x-…-500.
Combinable with extension insert, 64891 UR-508.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [XX] 64811
Instructions and Manuals (Part 2)
Open source licenses (.PDF) [EN] Busch-flexTronics CWA devices
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw
Ambient Air Temperature
Operation -25 ... +55 °C
Number of Outputs
1
Number of Gangs
1
Number of Inputs
1
Product Range
flexTronics | flexTronics Wireless | free@home Wireless | free@home
Connection Type
Pin
Terminal Type
Screw Terminals
Rated Voltage (Ur)
230 V
Rated Current (In)
10 A
Rated Frequency (f)
50 Hz
Maximum Switching Power
Fluorescent Lamp 2300 V·A | Halogen Low Voltage Lamps with Electronical Transformers (Capacitive Loads) 2300 V·A | Halogen Low Voltage Lamps with Magnetic Transformers (Inductive Loads) 2300 V·A | Incandescent Lamp or Halogen High Voltage Lamps 2300 W | LEDi 300 V·A
Load Type
Universal and LED Retrofit | LEDi/CFLi | Incandescent lamp | Halogen lamp, high voltage | Halogen lamp, low voltage | Fluorescent lamp
Power Loss
0.3 W
Number of Contacts NO
1
Design Range
SIDUS
Product Net Width
0.14 m
Product Net Height
0.227 m
Product Net Depth / Length
0.181 m
Product Net Weight
64.18 g
Built-In Depth (t2)
25 mm
Environmental Product Declaration - EPD
Environmental Product Declaration (.PDF) [EN] RELAY INSERT FLEX
RoHS Information
Product Declaration.PDF [EN] 64811 UR-508
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC001588 - Electronic switch
eClass
V11.0 : 27144054
Feature: Flush-mounted 1-gang design with screw terminals reduces panel footprint and simplifies retrofit work. This improves field installation efficiency by reducing wiring complexity and time to commission. Application: ideal for ABB flexTronics lighting control in 1-gang wall-switch configurations. Feature: 230 V operation at 10 A and 50 Hz with 0.3 W idle power loss supports a broad range of lighting loads while keeping standby consumption low. This translates to predictable performance and reduced energy waste in commercial spaces. Application: suitable for fluorescent, LED retrofit, incandescent and halogen lighting loads. Feature: Pin connection and screw-terminal terminals provide robust, versatile wiring options. This minimizes connection failures in busy electrical cabinets and simplifies field maintenance. Application: can be wired to conventional push buttons or ABB control elements like 64765-3..-508 for flexible control. Feature: Compatibility with ABB Comfort switch flex control element 64765-3..-508 and Watchdog 180 flex sensors, as well as wireless 6276x-3..-WL-508 sensors. This enables seamless integration within the flexTronics and free@home ecosystems. Application: supports scalable automation in smart homes and light-management projects. Feature: Environmental compliance with RoHS, REACH, and WEEE documentation; ETIM 9 EC001588 electronic switch and eClass V11.0 27144054 references. This ensures supply-chain accuracy and regulatory alignment. Application: suitable for enterprise deployments prioritizing sustainability and data integrity. Feature: Built-in depth of 25 mm and compact dimensions fit standard flush-mounted boxes, aiding quick installs and reducing enclosure rework. Application: ideal for retrofits in compact control panels and new installations alike.
Get a Quick Quote for a ABB 2CKA006800A3043
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA006800A3043?
Enquire Now
FAQs
Install the relay insert in a standard 1-gang, flush-mounted enclosure and secure with screws. Use a 3-wire connection including a neutral conductor for 230 V operation. Connect the input to a push button or ABB control element such as 64765-3..-508, then wire the load to the NO output via the screw terminals. Ensure correct polarity and secure all terminations before energizing.
The 2CKA006800A3043 handles universal and LED retrofit loads, including fluorescent, incandescent, and halogen lamps. It supports a maximum switching power of 2300 VA, corresponding to up to 10 A at 230 V for a broad range of lighting configurations, while the 0.3 W power loss keeps standby consumption low.
Yes. The relay insert is designed to work with ABB flexTronics and can be combined with extension insert 64891 UR-508. It also supports integration with free@home Wireless and Watchdog 180 flex sensors, enabling scalable, multi-device lighting control within ABB’s automation ecosystem.
The unit complies with RoHS and REACH regulations and is documented for WEEE compliance. It is referenced in environmental declarations (EPD) and product data standards. This helps reduce regulatory risk in global deployments and supports sustainability reporting.
Product net width is 0.14 m, height is 0.227 m, and net depth is 0.181 m, with a built-in depth of 25 mm. The unit weighs about 64.18 g. These dimensions suit standard flush-mounted enclosures and enable straightforward retrofit into existing wall boxes.
