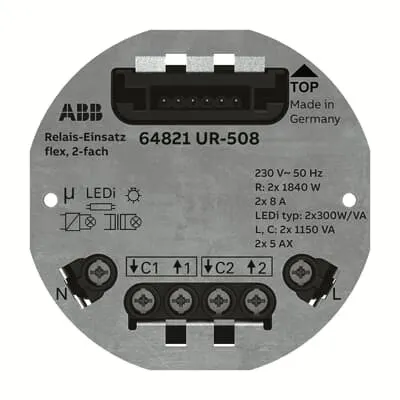

ABB 2CKA006800A3046 Relay insert - 230 V, 8 A
Part Number: 2CKA006800A3046
Quick Summary
ABB 2CKA006800A3046 Relay insert is a 230 V control module for compact two‑gang switching in lighting and ventilation systems. Engineers frequently face wiring complexity and crowded electrical boxes when upgrading to multi‑load control in modern installations. This device complies with RoHS and REACH, and aligns with WEEE guidelines to support safe recycling and regulatory compliance. Designed for ABB Comfort switch flex control elements and Watchdog/ABB sensors, it also integrates with free@home ecosystems for reliable, energy‑efficient operation. These features bolster long‑term reliability, reduce field wiring time, and simplify maintenance in multi‑load environments.
Product Information
Extended Description
2CKA006800A3046 ABB: 3 wire connection (neutral conductor required).
For switching lighting systems.
For switching two independent load circuits.
For controlling light and ventilation systems.
Operation in 1gang 2way installations via push button input.
Operation also possible via conventional push buttons.
Without control unit.
For ABB Comfort switch flex control element 64765-3..-508 .
For ABB Watchdog 180 flex sensors 6476x-3-508 .
For ABB Watchdog 180 flex sensors, wireless, 6276x-3..-WL-508.
For ABB presence detector flex sensors 6475x-…-500.
Combinable with extension insert, 64891 UR-508.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [XX] 64821
Instructions and Manuals (Part 2)
Open source licenses (.PDF) [EN] Busch-flexTronics CWA devices
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw
Ambient Air Temperature
Operation -25 ... +55 °C
Number of Outputs
2
Number of Gangs
2
Number of Inputs
2
Product Range
flexTronics | flexTronics Wireless | free@home Wireless | free@home
Connection Type
Pin
Terminal Type
Screw Terminals
Rated Voltage (Ur)
230 V
Rated Current (In)
8 A
Rated Frequency (f)
50 Hz
Maximum Switching Power
Fluorescent Lamp 1150 V·A | Halogen Low Voltage Lamps with Electronical Transformers (Capacitive Loads) 1150 V·A | Halogen Low Voltage Lamps with Magnetic Transformers (Inductive Loads) 1150 V·A | Incandescent Lamp or Halogen High Voltage Lamps 1840 W | LEDi 300 V·A
Load Type
Universal and LED Retrofit | LEDi/CFLi | Incandescent lamp | Halogen lamp, high voltage | Halogen lamp, low voltage | Fluorescent lamp
Power Loss
0.3 W
Design Range
SIDUS
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
30 mm
Product Net Weight
97.5 g
Built-In Depth (t2)
28 mm
Environmental Product Declaration - EPD
Environmental Product Declaration (.PDF) [EN] RELAY INSERT FLEX
RoHS Information
Product Declaration.PDF [EN] 64821 UR-508
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC001588 - Electronic switch
eClass
V11.0 : 27144054
Flush-mounted, 2-gang, screw-mount design reduces wall box depth and creates a neat, serviceable installation with minimal space impact. This supports efficient retrofits and new builds where fixture density matters, while ensuring safe grounding and secure wiring via screw terminals. The unit provides two outputs and two inputs at 230 V and 50 Hz, enabling independent control of lighting and ventilation loads with a maximum switching capability aligned to typical household and commercial circuits. A modest 0.3 W no-load power loss improves energy efficiency for continuously powered applications, lowering ongoing operating costs. Compatibility with flexTronics and free@home families shortens engineering time and reduces integration risk for automation projects, and the option to pair with 64891 UR-508 extension inserts offers scalable expansion. The design also accommodates 3-wire connections (neutral required) for common lighting configurations and supports ABB Comfort switch elements 64765-3..-508 and Watchdog sensors, delivering a cohesive control strategy.
Get a Quick Quote for a ABB 2CKA006800A3046
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CKA006800A3046?
Enquire Now
FAQs
Install in a standard 2-gang flush-mounted enclosure using the provided screw terminals for two inputs and two outputs. Connect live and neutral as required (3-wire connection with neutral), secure the device with screws, and verify the alignment with the 71 mm x 71 mm cutout. Follow the Installation Instructions for correct wiring sequencing and safety.
The unit operates at 230 V, 50 Hz with two independent outputs and two inputs, rated up to 8 A per channel. It supports a range of loads including LED retrofit, fluorescent, incandescent, and halogen lamps, with a maximum switching power depending on load type. No-load power loss is 0.3 W, aiding energy efficiency in continuous operation.
Yes. The product range includes flexTronics, flexTronics Wireless, free@home Wireless, and free@home. It is designed to work with ABB Comfort switch flex control elements and Watchdog sensors, offering streamlined integration and scalable automation within ABB ecosystems.
The relay insert is RoHS and REACH compliant and falls under WEEE regulations. It provides an Environmental Product Declaration (EPD) and CMRT documentation, supporting responsible material use, safe disposal, and regulatory transparency for industrial and commercial installations.
The 2CKA reduces wiring complexity with screw terminals and a compact 2-gang footprint, shortening installation time. Its low standby power (0.3 W) lowers energy costs over time, while compatibility with extension inserts and ABB control elements minimizes spare parts and field adjustments, delivering predictable performance and improved total cost of ownership.
