2CKA008300A0024
Part Number: 2CKA008300A0024
Product Information
Extended Description

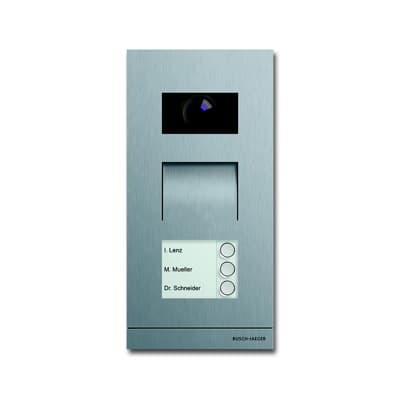

2CKA008300A0024 ABB: Video camera with automatic day/night switchover and infrared LEDs to illuminate the night shots. Hands-free device and key modules are backlit. Stamped labelling foil is enclosed. Mounting tool is enclosed. For flush-mounted installation with 41383F-H-03 / 41383F-B-03. For surface-mounted installation with 41383S-B-03 / 41383S-H-03. Vertical/horizontal detection angle: 86°/67° Setting angle horizontal/vertical: +/-15°, mechanically adjustable Consumer units: 8
Instructions and Manuals
DEBJE-83121_1_2_3-DinA4-Online de
Installation Instruction
2-wire
Mounting Type
Miscellaneous
Ambient Air Temperature
Operation -25 ... +55 °C
Degree of Protection
IP44
Data Sheet, Technical Information
2CKA000001A1572
Number of Buttons
3
Compatible Bus Systems
Welcome
Product Range
Welcome
Battery Weight
0 g
Number of Batteries
0
Button Material
Plastic
Housing Material
Plastic
Color
stainless steel
Product Net Width
180 mm
Product Net Height
75 mm
Product Net Depth / Length
345 mm
Product Net Weight
1560 g
RoHS Information
Product Declaration.PDF [EN] 83121/3-660
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 83121/3-660
ETIM 9
EC001351 - Push button panel door communication
eClass
V11.0 : 27144309
