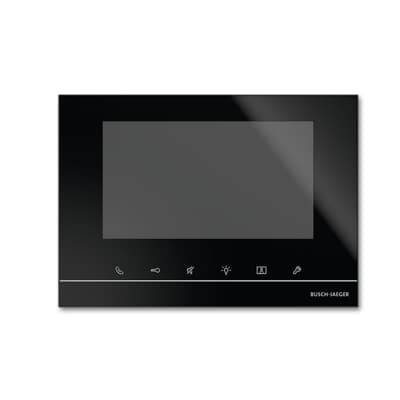

2CKA008300A0354
Part Number: 2CKA008300A0354
Product Information
Extended Description
2CKA008300A0354 ABB: For ABB-free@home® and ABB-Welcome. For the central control of up to 16 configurable ABB-free@home® functions of type: switching, dimming, blind, RTC, scene, Philips HUE. Display of the video image of the outdoor station. During the conversation a picture of the visitor can be taken and stored in the picture memory. For door calls during absence three pictures of the visitor are automatically stored in the picture memory. With hands-free function, volume is adjustable. Easy operation keys for door openers, mute function and light. Different bell sounds are adjustable for door and floor ringing five polyphone bell sounds are available. Volume of bell sounds is adjustable. SD card slot for extension of the picture memory. Suitable as room temperature controller extension unit (up to 8). For surface mounting. The bus can be connected via enclosed terminal block. Display size: 17.8 cm (7'') Display resolution: 800 x 480 Consumer units: 11
Wiring Diagram
Connection diagram (.jpg) 83221AP-XXX
Mounting Type
Surface Mounted
Ambient Air Temperature
Operation -5 ... +40 °C
Degree of Protection
IP30
Data Sheet, Technical Information
System Manual (.HTM) [DE] Busch-free@home
Compatible Bus Systems
free@home (TP)
Product Range
free@home
Display Type
TFT Touch Display
Battery Weight
0 g
Number of Batteries
0
Surface Finishing
Untreated | Glossy
Material
Thermoplastic
RAL Number
RAL 9005 - Jet Black
Color
black
Product Net Width
218 mm
Product Net Height
155 mm
Product Net Depth / Length
30 mm
Product Net Weight
600 g
Built-In Depth (t2)
0 mm
Dimension Diagram
Dimension drawing [EN] m_83221
Screen Size
7 in
RoHS Information
Product Declaration.PDF [EN] 83221AP-625
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230825
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 83221AP-625
ETIM 9
EC000677 - Display for bus system
