2CKA008300A0416
Part Number: 2CKA008300A0416
Product Information
Extended Description

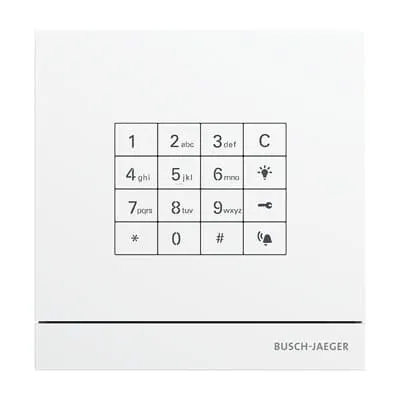

2CKA008300A0416 ABB: Front plate made of 3 mm steel. Enables the opening of the door using a numerical code. 256 users can be taught in. Standalone operation together with system controller 83300 (power supply and connection for the electrical door opener. Programming directly on the module or using a web browser (requires IP gateway 83342). Mounting tool is enclosed. For flush-mounted installation with 41381F-B-03 / 41381F-H-03. Consumer units: 1
Mounting Type
Flush Mounted | Surface Mounted
Modular Components Included
Complete Device
Degree of Protection
IP44
Number of Buttons
0
Compatible Bus Systems
Welcome
Product Range
Welcome
Operational Voltage
Maximum 28 V
Input Voltage Type
DC
Housing Material
Plastic
Material
Stainless steel
Color
white
Product Net Width
135 mm
Product Net Height
139 mm
Product Net Depth / Length
29 mm
Product Net Weight
0.78 kg
RoHS Information
Product Declaration.PDF [EN] 83100/71-664
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 83100/71-664
ETIM 9
EC000349 - Functional module for door communication
