2CKA008300A0425
Part Number: 2CKA008300A0425
Product Information
Extended Description

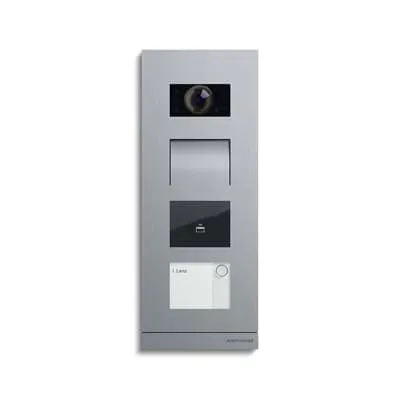

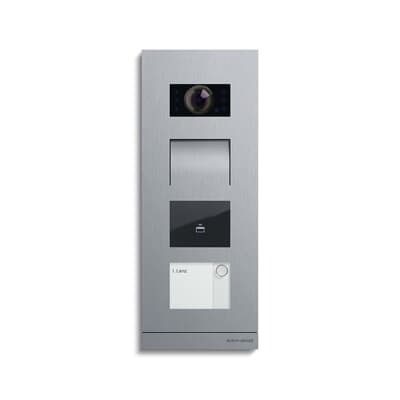

2CKA008300A0425 ABB: Front plate made of 3 mm stainless steel. Video camera with automatic day/night switchover and infrared LEDs to illuminate the night shots. Communication unit and key module are backlit. Stamped labelling foil is enclosed. Mounting tool is enclosed. For flush-mounted installation with 41384F-B-03 / 41384F-H-03. For surface-mounted installation with 41384S-B-03 / 41384S-H-03. Vertical/horizontal detection angle: 86°/67° Setting angle horizontal/vertical: +/-15°, mechanically adjustable Enables the opening of the door using a key card 83173 (contactless). 256 users can be taught in. Programming directly on the module or using a web browser (requires IP gateway 83342). Consumer units: 10
Installation Instruction
Bus system
Mounting Type
Miscellaneous
Ambient Air Temperature
Operation -25 ... +55 °C
Degree of Protection
IP44
Data Sheet, Technical Information
2CKA000001A1572
Number of Buttons
1
Compatible Bus Systems
Welcome
Product Range
Welcome
Battery Weight
0 g
Number of Batteries
0
Button Material
Plastic
Color
stainless steel
Product Net Width
0.098 m
Product Net Height
0.103 m
Product Net Depth / Length
0.047 m
Product Net Weight
1.98 kg
RoHS Information
Product Declaration.PDF [EN] 83122/72/1-660
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Product Declaration.PDF [EN] 83122/72/1-660
ETIM 9
EC001351 - Push button panel door communication
eClass
V11.0 : 27144309
