2CKA008300A0443
Part Number: 2CKA008300A0443
Product Information
Extended Description

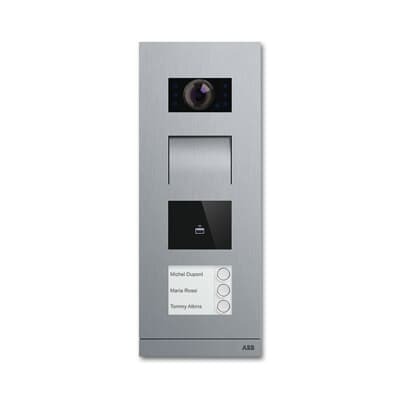

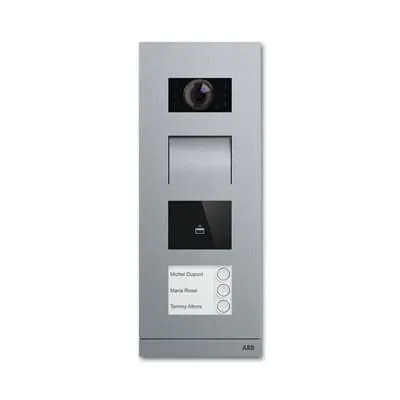

2CKA008300A0443 ABB: Front plate made of 3 mm stainless steel. Video camera with automatic day/night switchover and infrared LEDs to illuminate the night shots. Communication unit and key module are backlit. Stamped labelling foil is enclosed. Mounting tool is enclosed. For flush-mounted installation with 41384F-B-03 / 41384F-H-03. For surface-mounted installation with 41384S-B-03 / 41384S-H-03. Vertical/horizontal detection angle: 86°/67° Setting angle horizontal/vertical: +/-15°, mechanically adjustable Enables the opening of the door using a key card 83173 (contactless). 256 users can be taught in. Programming directly on the module or using a web browser (requires IP gateway 83342). Consumer units: 10
Installation Instruction
Bus system
Mounting Type
Miscellaneous
Ambient Air Temperature
Operation -25...55 °C
Degree of Protection
IP44
Number of Buttons
3
Compatible Bus Systems
Welcome
Number of Batteries
0
Button Material
Plastic
Color
stainless steel
Product Net Width
13.5 cm
Product Net Height
34.9 cm
Product Net Depth / Length
4.3 cm
Product Net Weight
1.554 kg
Replaced Product ID (OLD)
8300-0-0443
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Product Declaration.PDF [EN] 83122/72/3-660-500
