2CKA008300A0490
Part Number: 2CKA008300A0490
Product Information
Extended Description

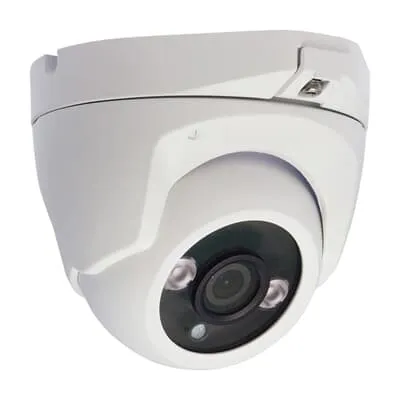

2CKA008300A0490 ABB: Image Sensor: 1/3” 1.3MP SONY Exmor CMOS. Effective Pixels: 1305(H)×1049(V). Resolution: 700. horizontal detection angle: 75° S/N Ratio: ≥50 dB Min. IIIumination (Day): 0.1 Lux @ F2.0 Min. IIIumination (Night): 0 Lux @ F2.0 Video signal: 1 x CVBS, 1Vpp, 75 Ohm (Cinch) White Balance: AWB, 1800 – 10800 DNR: 2D DNR, 3D DNR Lens: 3.6 mm. IR Range: 30 m Input Voltage: DC 12 V +/- 10 % (e.g. ABB CP-D 12/0.83 or CP-D 12/2.1) Rated current: 330 mA Power Consumption: <4 W Weight: 450 g Protection class (Device): IP 66 Temperature range (Device): -20 °C to +60 °C Operation humidity: <85 % Dimensions (D x H): 93.2 x 81.7 mm 40 cm preassembled cable with connecting plugs. A connection unit is required for the installation (not included in the scope of supply. e.g. Spelsberg 33441201).
Mounting Type
Surface Mounted
Degree of Protection
IP66
Product Range
Welcome
Material
Metal
Color
white
Product Net Width
93.2 mm
Product Net Height
81.7 mm
Product Net Depth / Length
93.2 mm
Product Net Weight
315 g
RoHS Information
Product Declaration.PDF [EN] 83550/3
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230825
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 83550/3
ETIM 9
EC001104 - External camera door communication
