2CKA008300A0492
Part Number: 2CKA008300A0492
Product Information
Extended Description

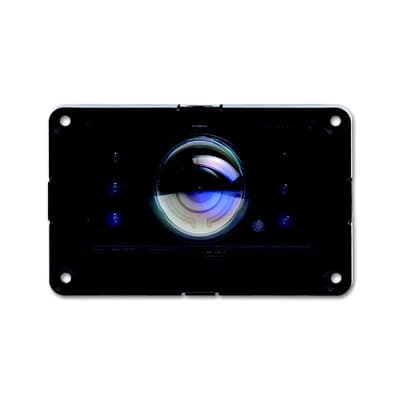

2CKA008300A0492 ABB: For the integration into letter boxes and bell systems of different manufacturers, such as the products of Erwin Renz Metallwarenfabrik GmbH & Co KG, Boschstr. 3, 71737 Kirchberg/Murr, Germany. The cutout must be created by the manufacturer. Extended audio module assembly with video function. Video camera with automatic day/night switchover and infrared LEDs to illuminate the night shots. Installed heating to keep the lens free of condensation. Vertical/horizontal detection angle: 170°/135° Consumer units: 4 For an outdoor video station it is necessary to replace the basic module 83140/xx with a new base call button module 83140/xx-101. The current basic module 83140/xx can continue to be used with an outdoor audio station.
Mounting Type
Built-in
Ambient Air Temperature
Operation -25 ... +55 °C
Degree of Protection
IP54
Number of Buttons
0
Product Range
Welcome
Sensor Detection Range
Diagonal 180 ° | Horizontal 170 ° | Vertical 135 °
Operational Voltage
Maximum 28 V
Input Voltage Type
DC
Housing Material
Plastic
Material
Plastic
Color
black
Product Net Width
98 mm
Product Net Height
62 mm
Product Net Depth / Length
33 mm
Product Net Weight
110.5 g
Dimension Diagram
Dimension drawing [EN] Cameramodul-13-11-21
RoHS Information
Product Declaration.PDF [EN] 83503
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230825
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Product Declaration.PDF [EN] 83503
ETIM 9
EC000349 - Functional module for door communication
