2CKA008300A1166
Part Number: 2CKA008300A1166
Product Information
Extended Description

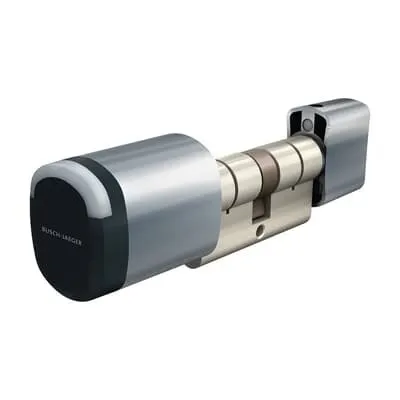

2CKA008300A1166 ABB: Cylinders are available for different types of doors. Battery service life: Up to 130,000 openings. Aside from the Smart Access Point Pro/Lite, also the Access Control maintenance card (Art. no. D080MC-0x), and the mounting tool (Art. no. D080MT-0x) are required for commissioning the cylinders. Encrypted communication with the Busch-AccessControl identification media (Art. no. D081xx-0x), as well as the AccessControl construction site and maintenance cards (Art. no. D080MC-0x and D080CC-0x). Additional details for the set up of the system is available in the system manual. Range in free field: 10 m Battery included in scope supply.
Instructions and Manuals
Operating instruction EU / CH profile type(.PDF) [MULTI] AccessControl
Ambient Air Temperature
Operation -35 ... +55 °C
Degree of Protection
IP66
Product Range
AccessControl
Type of Indicator
Light signal
Battery Chemical Composition
Alkaline
Battery Size
LR1
Battery Type
Portable
Number of Batteries
4
Battery Integration Type
Replaceable Non-Rechargeable
Material
Metal
Color
black / satin chrome
Product Net Width
31.5 mm
Product Net Height
38.5 mm
Product Net Depth / Length
187 mm
Product Net Weight
650 g
Size
70/35 mm
Thickness
Inside Length 35 mm | Outside Length 70 mm
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] D01EU703503TF1-03
ETIM 9
EC001770 - Access control system
eClass
V11.0 : 27390190
