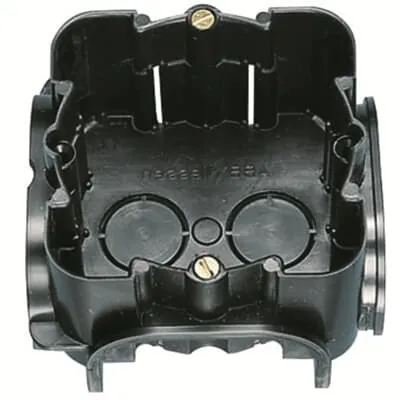

2CLA019900A1001
Part Number: 2CLA019900A1001
Product Information
Extended Description
2CLA019900A1001 ABB: Units per box: 250.
Permits the entrance of two tubes for each side.
Connectable.
Horizontal and vertical fixation possible.
Distance between screws: 60 mm
Mounting Type
Flush Mounted
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Number of Conduit Inlets
2
Number of Gangs
1
Number of Inlet Inserts Included
0
Switching Equipment Mounting Type
Screw
Design Range
Various
Shape
Square
Surface Finishing
Untreated
Material
Plastic
Color
Black
Product Net Width
0.088 m
Product Net Height
0.383 m
Product Net Depth / Length
0.392 m
Product Net Weight
0.026 kg
Replaced Product ID (OLD)
2CLA019900A1003
RoHS Information
2CLA019900A1001_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108469A7957-A REACH-2024 Declaration ABB Niessen
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
ETIM 9
EC002601 - Box/housing for built-in mounting in the wall/ceiling
Circuit Integrity
E 60
