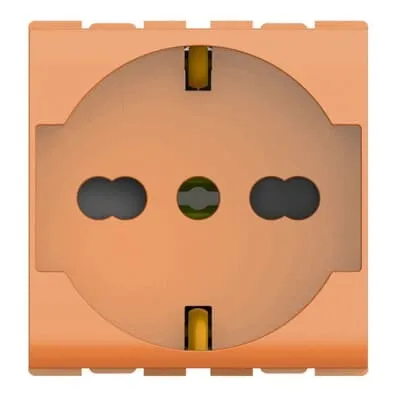

2CLA023300N2502
Part Number: 2CLA023300N2502
Product Information
Instructions and Manuals
Origen Phase2 GLOBAL catalogue HOR-VER [EN] (PDF)
Mounting Type
Flush-mounted
Type of Fastening
Engage (Snap)
Degree of Protection
IP20
Number of Phases
2
Number of Gangs
1
Connection Type
Screw
Socket Outlet Type
Power Socket Outlets - Italian P11/17 acc. to CEI 23-50
Rated Voltage (Ur)
250 V
Rated Current (In)
10 … 16 A
Design Range
Origen
Material
Plastic | Metal
Legend
None
Label Space Provided
No
Color
Orange
Product Net Width
44 mm
Product Net Height
44 mm
Product Net Depth / Length
42 mm
Product Net Weight
39 g
REACH Information
No data - If REACH inform is not yet available for a certain product
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC000125 - Socket outlet
UNSPSC
39121406
