2CLA026493A1001
Part Number: 2CLA026493A1001
Product Information
Extended Description

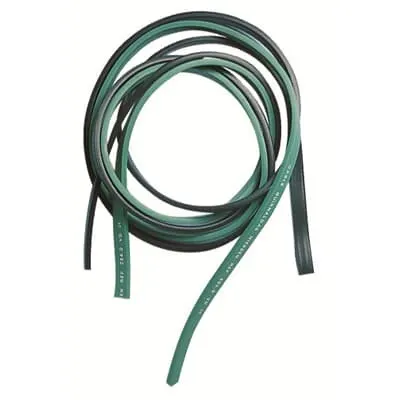

2CLA026493A1001 ABB: Cable for garlands 0,6 / 1kV.
Self-demanding according to standard: UNE 20432-1.
Bending radius: 5 x Ø external.
Mechanic resistance to traction: 15 k.
According to standards: UNE 21027 and UNE 21031.
Wire section: 2,5 mm2.
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Fire and Smoke Standard
EN 60332-1-2
Conductor Category
Flexible
Number of Conductors
2
Strand Type
Pairs
Outer Sheath Material
Rubber - Silicone Rubber (SIR)
Cable Size
Height 5.2 mm | Width 13.3 mm
Rated Voltage (Ur)
U 1000 V | U0 1000 V
Design Range
Various
Shape
Flat
Color
Black
Product Net Width
0.13 m
Product Net Height
0.21 m
Product Net Depth / Length
0.206 m
Product Net Weight
0.122 kg
Replaced Product ID (OLD)
2CL0026493
RoHS Information
2CLA026493A1001_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108467A7464-B REACH-2023 Declaration ABB Niessen
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230816
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC003250 - Power cable < 1 kV, for moving application
Euro Class Reaction-To-Fire Class
B1ca
Euroclass Acidity
A2
Euroclass Flaming Droplets / Particles
D1
Euroclass Smoke Development Class
S1a
