2CLA112800N1103
Part Number: 2CLA112800N1103
Product Information
Extended Description

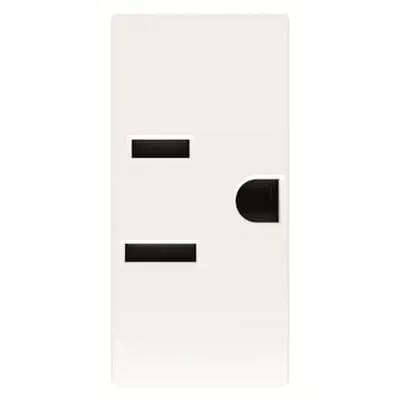

2CLA112800N1103 ABB: Color: White.
Rated voltage: 125 Vac.
Rated current: 15 A.
Type B: 2P + E / NEMA 5-15R.
Shuttered for child safety.
Screw terminals.
Size: 1 module.
Instructions and Manuals
9AKK108469A6197
Mounting Type
Flush Mounted
Type of Fastening
Snapper Mounting
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Unno catalogue 2018
Number of Phases
2
Number of Gangs
1
Connection Type
Screw
Socket Outlet Type
Power Socket Outlets - US Grounded acc. to NEMA 5-15
Number of Batteries
0
Rated Voltage (Ur)
127 V
Rated Current (In)
15 A
Frequency (f)
60 ... 60 Hz
Design Range
Unno
Surface Finishing
Untreated | Glossy
Material
Thermoplastic | Plastic
Label Space Provided
No
RAL Number
RAL 9010 - Pure White
Color
White
Product Net Width
22 mm
Product Net Height
46 mm
Product Net Weight
25 g
Replaced Product ID (OLD)
2CL0N112801MEX
RoHS Information
2CLA112800N1103_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108467A7464-B REACH-2023 Declaration ABB Niessen
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230816
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
f17261ec-4148-477e-bd9a-f80e5ed398d6 Spain (ES)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC000125 - Socket outlet
UNSPSC
39121406
