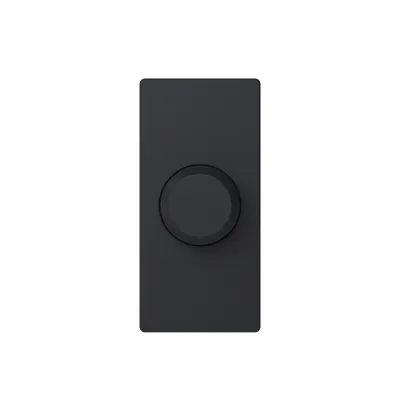

2CLA116080N1503
Part Number: 2CLA116080N1503
Product Information
Extended Description
2CLA116080N1503 ABB: Rated voltage: 110 Vac ± 10%.
Frequency: 60 Hz
Power (min./max load):
L-mode:
- LEDi (leading-edge): 2 / 70 W/VA (max. 10 lamps).
T-mode:
- LEDi (trailing-edge): 2 / 180 W/VA (max. 10 lamps).
- LV LEDi with 12V transformer (L or LC): 2 / 180 W/VA (max. 10 lamps).
- Incandescent lamps: 2 / 180 W/VA.
- Halogen lamps: 2 / 180 W/VA.
3 wire connection.
OFF position
Back-up fuse: Electronic.
Overload protection: Electronic.
Ambient temperature: 0° C to +35° C.
Instructions and Manuals
9AKK108469A6197
Data Sheet, Technical Information
Unno catalogue 2018
Design Range
Unno
Color
Matt Black
Product Net Width
0.023 m
Product Net Height
0.044 m
Product Net Depth / Length
0.037 m
Product Net Weight
28 g
RoHS Information
2CLA116080N1503_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Information
No data - If REACH inform is not yet available for a certain product
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC000025 - Dimmer
UNSPSC
39122206
