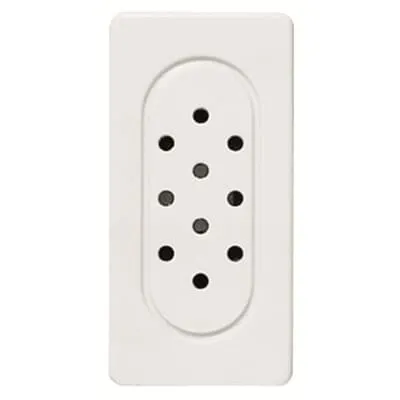

2CLA211900A1101
Part Number: 2CLA211900A1101
Product Information
Extended Description
2CLA211900A1101 ABB: 125 - 250 V~, 8 VA.
Acoustic power to 1 m distance: 75 dB.
With screw to adjust sound volume.
Mounting Type
Built-in
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Sound / Tone Type
Continuous Tone
Sound dB (A)
75 dB
Number of Batteries
0
Current Type
AC
Rated Voltage (Ur)
250 V
Power Consumption (@Pcons)
0.2 A
Design Range
Stylo
Surface Finishing
Untreated
Housing Material
Plastic
Color
Alpin White
Housing Color
White
Product Net Width
22 mm
Product Net Height
44 mm
Product Net Weight
0.039 kg
Replaced Product ID (OLD)
2CLA211900A1103
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC000844 - Buzzer
