2CLA211900N1101
Part Number: 2CLA211900N1101
Product Information
Extended Description

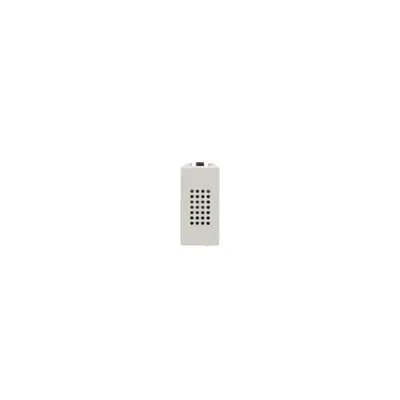

2CLA211900N1101 ABB: Color: White.
Rated voltage: 127 - 230 Vac / 50 - 60 Hz
Rated power: 8 VA
Adjustable tone
Acoustic power at 1 meter with cover plate: 75 dB
Size: 1 module.
Instructions and Manuals
Manual - Zenit range
Mounting Type
Built-in
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
9AKK10103A5108
Sound / Tone Type
Continuous Tone
Sound dB (A)
75 dB
Number of Batteries
0
Current Type
AC
Rated Voltage (Ur)
250 V
Power Consumption (@Pcons)
0.2 A
Design Range
Zenit
Surface Finishing
Untreated | Glossy
Housing Material
Plastic
Material
Plastic | Thermoplastic
RAL Number
RAL 9010 - Pure White
Color
White
Housing Color
White
Product Net Width
22 mm
Product Net Height
44 mm
Product Net Weight
35 g
Replaced Product ID (OLD)
2CLA211900N1102 | 2CLA211900N1103
RoHS Information
2CLA211900N1101_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108467A7464-B REACH-2023 Declaration ABB Niessen
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230816
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
5f1065a3-2e1a-4db1-a878-427cba57eb08 Spain (ES)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Niessen Buzzer CE Declaration
ETIM 9
EC000844 - Buzzer
