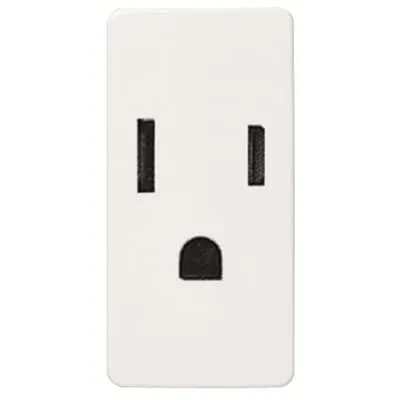

2CLA212800A1101
Part Number: 2CLA212800A1101
Product Information
Extended Description
2CLA212800A1101 ABB: 15 A / 127 V~
Mounting Type
Flush Mounted
Type of Fastening
Snapper Mounting
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Number of Phases
2
Number of Active Pin Terminals
0
Number of Gangs
1
Connection Type
Screw
Socket Outlet Type
Power Socket Outlets - US Grounded acc. to NEMA 5-15
Number of Batteries
0
Rated Voltage (Ur)
127 V
Rated Current (In)
15 A
Frequency (f)
60...60 Hz
Design Range
Stylo
Surface Finishing
Untreated | Glossy
Material
Duroplast | Plastic
Legend
Without imprint
Label Space Provided
No
Color
White
Product Net Width
22 mm
Product Net Height
44 mm
Product Net Weight
0.029 kg
Replaced Product ID (OLD)
2CLA212800A1103
RoHS Information
2CLA212800A1101_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108467A7464-B REACH-2023 Declaration ABB Niessen
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC000125 - Socket outlet
