2CLA213300N7001
Part Number: 2CLA213300N7001
Product Information
Extended Description

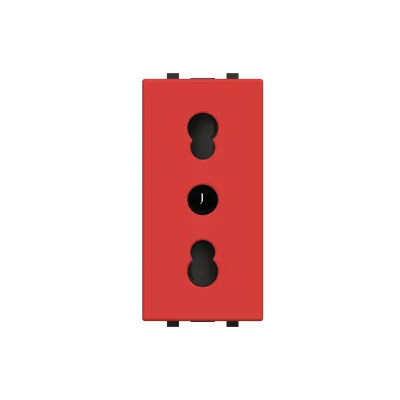

2CLA213300N7001 ABB: Color: Red.
Rated voltage: 250 Vac
Rated current: 16/10A
Type L: 2P + E / P17/11
Shuttered for child safety
Screw terminals
Size: 1 module.
Instructions and Manuals
Manual - Zenit range
Mounting Type
Flush-mounted
Type of Fastening
Engage (Snap)
Degree of Protection
IP20
Data Sheet, Technical Information
9AKK10103A5108
Number of Phases
2
Number of Gangs
1
Connection Type
Screw Clamp
Socket Outlet Type
Power Socket Outlets - Italian P11/17 acc. to CEI 23-50
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Frequency (f)
50 … 60 Hz
Power Supply Type
External
Design Range
Zenit
Surface Finishing
Untreated | Glossy
Material
Plastic | Thermoplastic
Legend
Without imprint
Label Space Provided
No
Color
Red
Product Net Width
22 mm
Product Net Height
44 mm
Product Net Depth / Length
73 mm
ABB EcoSolutions
Yes
Recyclability Rate of the Product acc. to EN45555
63.7 %
Sustainable Material Content in Packaging (wt. %)
92 %
Environmental Product Declaration - EPD
EPD-N2133.pdf
RoHS Information
2CLA213300N7001_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108469A7957-A REACH-2024 Declaration ABB Niessen
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Niessen Zenit Sockets outlets
ETIM 9
EC000125 - Socket outlet
UNSPSC
39121406
