2CLA213600N1302
Part Number: 2CLA213600N1302
Product Information
Extended Description

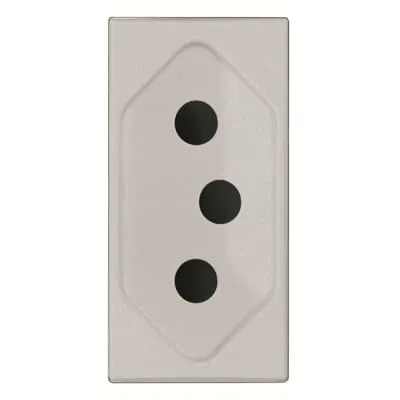

2CLA213600N1302 ABB: Color: Silver
Rated voltage: 250 Vac.
Rated current: 10 A.
Type N: 2P + E.
Shuttered for child safety.
Screw terminals.
Size: 1 module
Instructions and Manuals
9AKK10103A5108
Mounting Type
Flush-mounted
Type of Fastening
Engage (Snap)
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
9AKK10103A5108
Number of Phases
2
Number of Gangs
1
Connection Type
Screw Clamp
Socket Outlet Type
Power Socket Outlets - Italian P11/17 acc. to CEI 23-50
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
10 A
Frequency (f)
50 … 60 Hz
Power Supply Type
External
Design Range
Zenit
Surface Finishing
Decor | Matt
Material
Plastic | Thermoplastic
Legend
Without imprint
Label Space Provided
No
Color
Silver
Product Net Width
22 mm
Product Net Height
44 mm
Product Net Depth / Length
73 mm
Product Net Weight
27 g
RoHS Information
2CLA213600N1302_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108467A7464-B REACH-2023 Declaration ABB Niessen
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230816
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Niessen Zenit Sockets outlets
ETIM 9
EC000125 - Socket outlet
UNSPSC
39121406
