2CLA216000N1801
Part Number: 2CLA216000N1801
Product Information
Extended Description

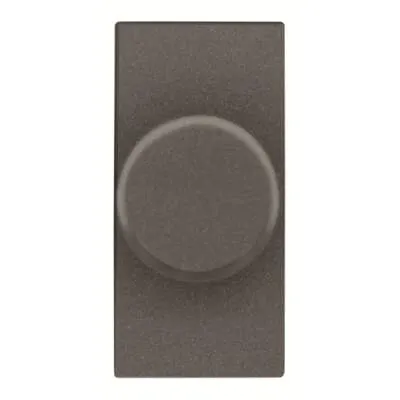

2CLA216000N1801 ABB: Color: Anthracite.
Rated voltage: 110-127 Vac / 60 Hz.
Min. power: 50 W.
Max. power: 500 W.
For incandescent and halogen lamps.
2 wire connection.
Size: 1 module.
Instructions and Manuals
Manual - Zenit range
Mounting Type
Flush Mounted
Type of Fastening
Snapper Mounting
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
9AKK10103A5108
Actuator Type
Turn button
Connection Type
Screw
Number of Batteries
0
Rated Voltage (Ur)
110...127 V
Frequency (f)
60...60 Hz
Load Type
Resistive load
Power Watt
60...500 V·A
Control Supply Voltage
1 ... 10 V
Design Range
Zenit
Surface Finishing
Decor | Matt
Material
Plastic | Thermoplastic
Color
Anthracite
Product Net Width
22 mm
Product Net Height
44 mm
Product Net Depth / Length
53 mm
Product Net Weight
41 g
Built-In Depth (t2)
54 mm
Replaced Product ID (OLD)
2CLA226060N1801 | 2CLA216000N1802 | 2CLA216000N1803 | 2CLA216000N1804
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC000025 - Dimmer
