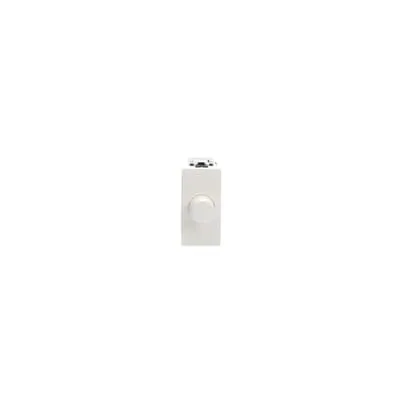

2CLA216030B1101
Part Number: 2CLA216030B1101
Product Information
Extended Description
2CLA216030B1101 ABB: Rated voltage: 230 Vac ± 10%.
Frequency: 50/60 Hz
Power (min./max load):
L-mode:
- LEDi (leading-edge): 4 / 100 W/VA (max. 10 lamps).
T-mode:
- LEDi (trailing-edge): 4 / 250 W/VA (max. 10 lamps).
- LV LEDi with 12V transformer (L or LC): 4 / 250 W/VA (max. 10 lamps).
- Incandescent lamps: 4 / 250 W/VA.
- Halogen lamps: 10 / 250 W/VA.
3 wire connection.
OFF position
Back-up fuse: Electronic.
Overload protection: Electronic.
Ambient temperature: 0° C to +35° C.
Combine with frame window any 22x44 or 44x44
Instructions and Manuals
Installation manual - 110-230V LED/Universal Rotary Dimmer and
Mounting Type
Flush Mounted
Type of Fastening
Engage (Snap)
Ambient Air Temperature
Storage -5 ... +35 °C | Storage Operation;-5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Installation manual - 110-230V LED/Universal Rotary Dimmer and
Connection Type
Screw
Illumination
Non-illuminated
Number of Batteries
0
Rated Voltage (Ur)
250 V
Design Range
Zenit BS
Surface Finishing
Untreated, Glossy
Material
Plastic, Thermoplastic
Label Space Provided
Yes
Color
White
Product Net Width
44 mm
Product Net Height
22 mm
Product Net Depth / Length
32 mm
Product Net Weight
0.125 kg
RoHS Information
2CLA216030B1101_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Information
No data - If REACH inform is not yet available for a certain product
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
6813bb48-db37-49bb-81e0-f215a365811a Spain (ES)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
