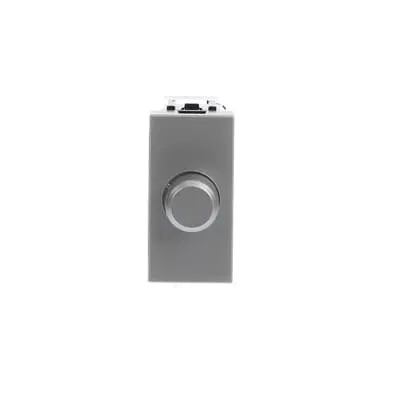

2CLA216030N1301
Part Number: 2CLA216030N1301
Product Information
Extended Description
2CLA216030N1301 ABB: Rated voltage: 230 Vac ± 10%.
Frequency: 50/60 Hz
Power (min./max load):
L-mode:
- LEDi (leading-edge): 4 / 100 W/VA (max. 10 lamps).
T-mode:
- LEDi (trailing-edge): 4 / 250 W/VA (max. 10 lamps).
- LV LEDi with 12V transformer (L or LC): 4 / 250 W/VA (max. 10 lamps).
- Incandescent lamps: 4 / 250 W/VA.
- Halogen lamps: 10 / 250 W/VA.
3 wire connection.
OFF position
Back-up fuse: Electronic.
Overload protection: Electronic.
Ambient temperature: 0° C to +35° C.
Instructions and Manuals
Installation manual - 110-230V LED/Universal Rotary Dimmer and
Mounting Type
Flush mounted (plaster)
Type of Fastening
Snapper Mounting
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Actuator Type
Turn button
Connection Type
Screw
Number of Batteries
0
Rated Voltage (Ur)
110 ... 127 V
Frequency (f)
60 ... 60 Hz
Load Type
Resistive load
Control Supply Voltage
1 ... 10 V
Design Range
Zenit
Surface Finishing
Decor | Matt
Material
Plastic | Thermoplastic
Color
Silver
Product Net Width
0.023 m
Product Net Height
0.044 m
Product Net Depth / Length
0.037 m
Product Net Weight
28 g
Built-In Depth (t2)
38 mm
Replaced Product ID (OLD)
2CLA216030N1302
RoHS Information
2CLA216030N1301_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC000025 - Dimmer
UNSPSC
39122206
