2CLA216080N1101
Part Number: 2CLA216080N1101
Product Information
Extended Description

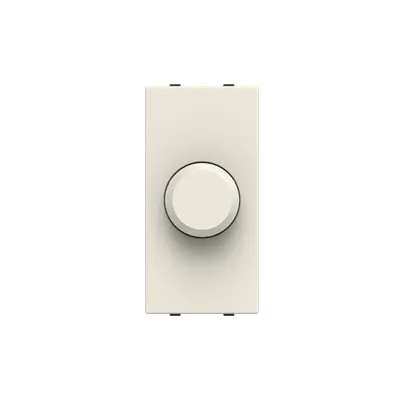

2CLA216080N1101 ABB: Color: White.
Rated voltage: 127 Vac ± 10%.
Frequency: 60 Hz.
Power (min./max load):
L-mode:
- LEDi (leading-edge): 2 / 70 W/VA (max. 10 lamps).
T-mode:
- LEDi (trailing-edge): 2 / 180 W/VA (max. 10 lamps).
- LV LEDi with 12V transformer (L or LC): 2 / 180 W/VA (max. 10 lamps).
- Incandescent lamps: 2 / 180 W/VA. - Halogen lamps: 2 / 180 W/VA.
*Max. 10 lamps.
Load selection
2 or 3 wire connection.
OFF position
Electronic back-up fuse & overload protection.
Size: 1 module.
Instructions and Manuals
Installation manual - 110-230V LED/Universal Rotary Dimmer and
Mounting Type
Flush mounted (plaster)
Type of Fastening
Snapper Mounting
Degree of Protection
IP20
Environmental Information
Doc 42-03-03 Dimmer
Data Sheet, Technical Information
9AKK10103A5108
Actuator Type
Turn button
Connection Type
Screw
Number of Batteries
0
Rated Voltage (Ur)
110 ... 127 V
Frequency (f)
60 ... 60 Hz
Load Type
Resistive load
Control Supply Voltage
1 ... 10 V
Design Range
Zenit
Surface Finishing
Untreated | Glossy
Material
Plastic | Thermoplastic
RAL Number
RAL 9010 - Pure White
Color
White
Product Net Width
23.000 mm
Product Net Height
44.000 mm
Product Net Depth / Length
37.000 mm
Product Net Weight
45 g
Built-In Depth (t2)
38 mm
Replaced Product ID (OLD)
2CLA216080N1102 | 2CLA216080N1103
RoHS Information
2CLA216080N1101_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
a03ea244-14aa-4e00-8144-a0a019dea983 Spain (ES)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC000025 - Dimmer
UNSPSC
39122206
