2CLA218000N1601
Part Number: 2CLA218000N1601
Product Information
Extended Description

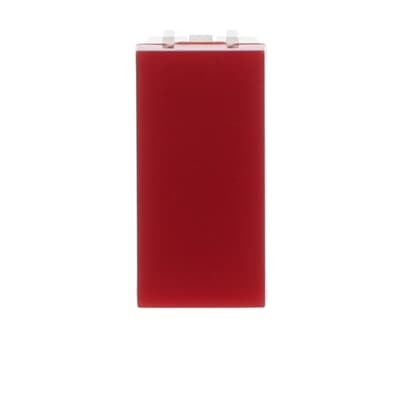

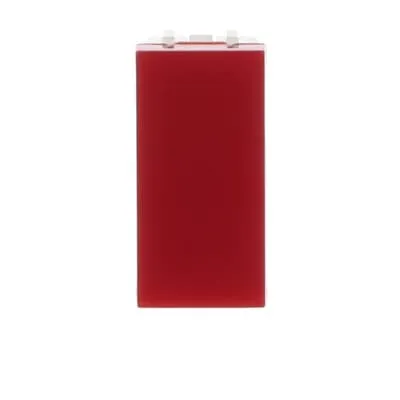

2CLA218000N1601 ABB: Color: Red.
Rated voltage: 127-230 Vac / 50-60 Hz
Lamp: white LED
Luminous flux: > 2 lumen at 1 meter
Red diffuser
Size: 1 module.
Instructions and Manuals
Manual - Zenit range
Mounting Type
Flush Mounted
Type of Fastening
Engage (Snap)
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
9AKK10103A5108
Lamp Type
LED not exchangeable
Lamp Color
White
Number of Batteries
0
Rated Voltage (Ur)
230 V
Design Range
Zenit
Surface Finishing
Untreated | Matt
Material
Plastic | Thermoplastic
Color
Red
Product Net Width
22 mm
Product Net Height
44 mm
Product Net Weight
28 g
Built-In Depth (t2)
40 mm
Replaced Product ID (OLD)
2CLA218000N1602
RoHS Information
2CLA218000N1601_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108467A7464-B REACH-2023 Declaration ABB Niessen
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230816
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
79f5ae87-e178-4b27-a719-36ee647d6eaf Spain (ES)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC000064 - Information light signal for domestic switching devices
UNSPSC
39121534
