2CLA220300N1101
Part Number: 2CLA220300N1101
Product Information
Extended Description

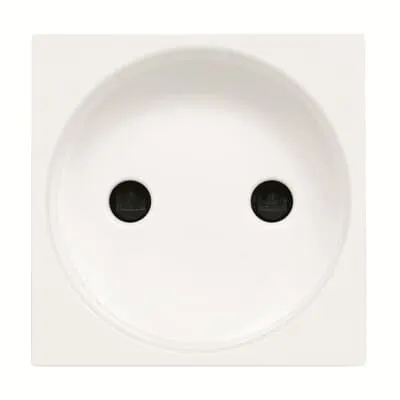

2CLA220300N1101 ABB: Color: White.
Rated voltage: 250 Vac.
Rated current: 16A.
Type C: 2P (non earthed).
Shuttered for child safety.
Screw terminals.
Size: 2 modules.
Instructions and Manuals
Manual - Zenit range
Mounting Type
Flush-mounted
Type of Fastening
Engage (Snap)
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
9AKK10103A5108
Number of Phases
2
Number of Active Pin Terminals
0
Number of Gangs
1
Connection Type
Screw Clamp
Socket Outlet Type
EURO Plug
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Frequency (f)
50 … 60 Hz
Power Supply Type
External
Design Range
Zenit
Surface Finishing
Untreated | Glossy
Material
Plastic | Thermoplastic
Legend
Without imprint
Label Space Provided
No
RAL Number
RAL 9010 - Pure White
Color
White
Product Net Width
44 mm
Product Net Height
44 mm
Product Net Depth / Length
73 mm
Product Net Weight
45 g
Replaced Product ID (OLD)
2CLA220300N1102
RoHS Information
2CLA220300N1101_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108467A7464-B REACH-2023 Declaration ABB Niessen
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230816
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
c63ae7ba-f8cc-447c-836f-0986357275fa Spain (ES)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Niessen Zenit Sockets outlets
ETIM 9
EC000125 - Socket outlet
