2CLA220800N1801
Part Number: 2CLA220800N1801
Product Information
Extended Description

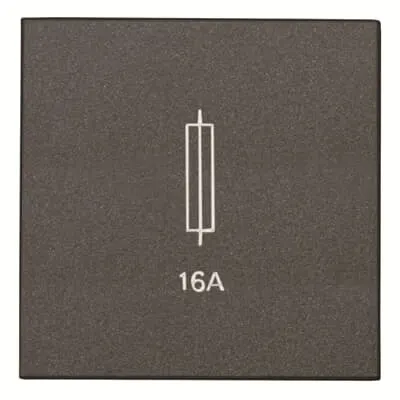

2CLA220800N1801 ABB: Color: Anthracite.
Rated voltage: 250 Vac
Rated current: 16A
Fuse type / dimension: glass tube / 6 x 24mm
Size: 2 modules.
Instructions and Manuals
Manual - Zenit range
Mounting Type
Snap mounting
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
9AKK10103A5108
Number of Poles
1P
Number of Batteries
0
Rated Voltage (Ur)
250 V
Design Range
Zenit
Surface Finishing
Decor | Matt
Material
Plastic | Thermoplastic
Color
Anthracite
Width in Number of Modular Spacings
2
Product Net Width
44 mm
Product Net Height
44 mm
Product Net Weight
29 g
Built-In Depth (t2)
28 mm
Replaced Product ID (OLD)
2CLA220800N1802
RoHS Information
2CLA220800N1801_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108467A7464-B REACH-2023 Declaration ABB Niessen
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230816
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC002705 - Holder for cylindrical fuse
UNSPSC
39121624
