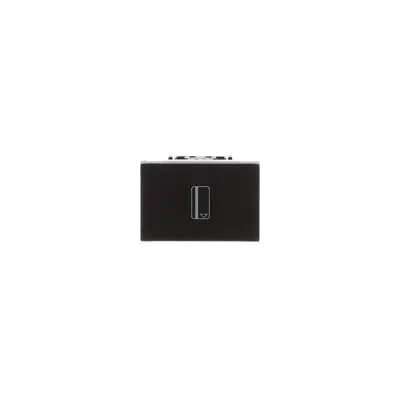

2CLA221410B1801
Part Number: 2CLA221410B1801
Product Information
Extended Description
2CLA221410B1801 ABB: Rated voltage: 250Vac
Rated current: 16AX
Max. power: iLED 200W.
Includes LED indicator
Function size: 44x44 mm
Combine with frame window 44x44 – Multi.
Instructions and Manuals
Manual - Zenit range
Mounting Type
Flush Mounted
Type of Fastening
Engage (Snap)
Ambient Air Temperature
Storage -5 ... +35 °C | Storage Operation;-5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Manual - Zenit range
Actuator Type
Hotel card
Connection Type
Screw
Illumination
Non-illuminated
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Design Range
Zenit BS
Surface Finishing
Decor, Matt
Material
Plastic, Thermoplastic
Label Space Provided
Yes
Color
Anthracite
Product Net Width
64 mm
Product Net Height
44 mm
Product Net Depth / Length
36 mm
Product Net Weight
0.065 kg
RoHS Information
2CLA221410B1801_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Information
No data - If REACH inform is not yet available for a certain product
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
AM Series Switches CE DoC 9AKK108466A9931
