2CLA221620N1301
Part Number: 2CLA221620N1301
Product Information
Extended Description

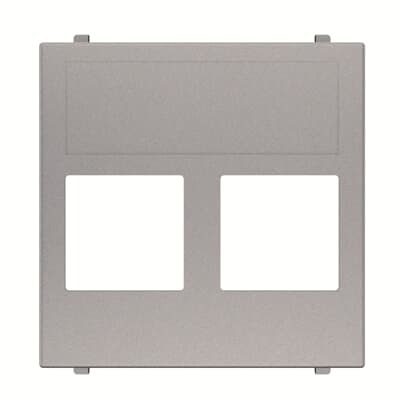

2CLA221620N1301 ABB: Color: Silver.
Cover plate for two 201X.X connectors and/or and housings (refs.: 2017.2, 2017.3, 2018.5, 2018.6, 2018 and 2018.8)
With labeling area for stickers
Without shutter
Size: 2 modules.
Instructions and Manuals
9AKK10103A5108
Mounting Type
Flush-mounted
Type of Fastening
Engage (Snap)
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
9AKK10103A5108
Application
For data connection housing
Type of Indicator
Without indication field
Outlet Orientation
Straight
Number of Batteries
0
Design Range
Zenit
Surface Finishing
Decor | Matt
Material
Plastic | Thermoplastic
Color
Silver
Product Net Width
44 mm
Product Net Height
44 mm
Product Net Depth / Length
31 mm
Product Net Weight
8 g
Replaced Product ID (OLD)
2CLA221620N1302 | 2CLA221620N1303
RoHS Information
2CLA221620N1301_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108469A7957-A REACH-2024 Declaration ABB Niessen
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC000018 - Insert/cover for communication technology
UNSPSC
39121704
