2CLA221860B1001
Part Number: 2CLA221860B1001
Product Information
Extended Description

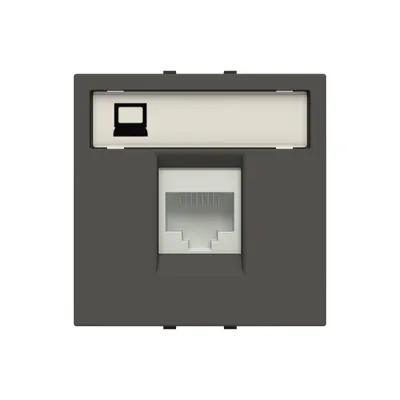

2CLA221860B1001 ABB: RJ45 type connector
Cat.6 - 8 pole
UTP (Unshielded Twisted Pair)
Housing: ABS+PC, UL 94V-0.
Max. data speed: 250MHz/1Gbps/100m (10Gbps at 37-55m)
Durability: 750 cycles (at least)
IDC: PC UL94V-0, Accept 22-26AWG solid wire.
Contact: RJ45 8P8C, 3~50 micro-inch gold plating over nickel
plated on contact area.
Standard: ANSI/TIA/EIA 568B.2, ISO/IEC11801 & EN50173.
Tool-less wiring.
Combine with any 22x44 or 44x44 multi frames
Mounting Type
Flush Mounted
Type of Fastening
Engage (Snap)
Ambient Air Temperature
Storage -5 ... +35 °C | Storage Operation;-5 ... +50 °C
Degree of Protection
IP20
Illumination
Non-illuminated
Number of Batteries
0
Design Range
Zenit BS
Surface Finishing
Untreated, Glossy
Material
Plastic, Thermoplastic
Label Space Provided
Yes
Color
Anthracite Polished
Product Net Width
44 mm
Product Net Height
44 mm
Product Net Depth / Length
32 mm
Product Net Weight
0.048 kg
RoHS Information
2CLA221860B1001_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Information
No data - If REACH inform is not yet available for a certain product
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
