2CLA221870B1101
Part Number: 2CLA221870B1101
Product Information
Extended Description

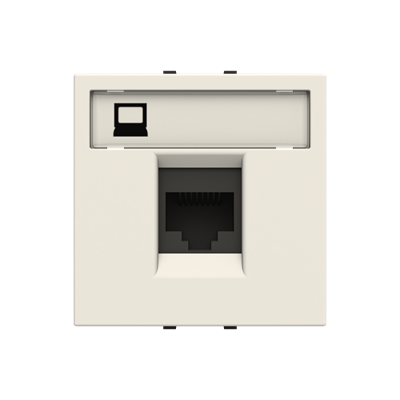

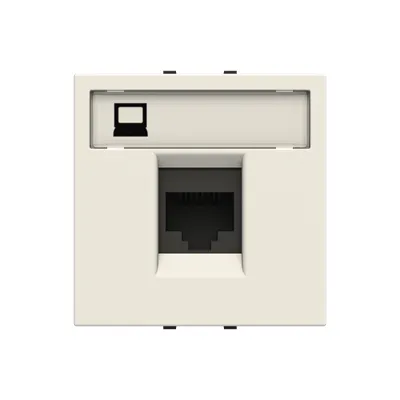

2CLA221870B1101 ABB: RJ45 type connector
Cat.6A - 8 pole
STP (Shielded Twisted Pair)
Housing: Zinc die-casting.
Max. data speed: 500MHz/10Gbps/100m
Durability: 750 cycles (at least)
IDC: PC UL94V-0, Accept 22-26AWG solid wire.
Contact: RJ45 8P8C, 3~50 micro-inch gold plating over nickel plated on contact area.
Standard: ANSI/TIA/EIA 568B.2, ISO/IEC11801 & EN50173.
Tool-less wiring.
Combine with any 22x44 or 44x44 multi frames
Mounting Type
Flush Mounted
Type of Fastening
Engage (Snap)
Ambient Air Temperature
Storage -5 ... +35 °C | Storage Operation;-5 ... +50 °C
Degree of Protection
IP20
Illumination
Non-illuminated
Number of Batteries
0
Design Range
Zenit BS
Surface Finishing
Untreated, Glossy
Material
Plastic, Thermoplastic
Label Space Provided
Yes
Color
White
Product Net Width
44 mm
Product Net Height
44 mm
Product Net Depth / Length
32 mm
Product Net Weight
0.180 kg
RoHS Information
2CLA221870B1101_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Information
No data - If REACH inform is not yet available for a certain product
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
3bcf2079-95dc-44af-a9f0-ab2c61d2651c Spain (ES)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
