2CLA222400N1801
Part Number: 2CLA222400N1801
Product Information
Extended Description

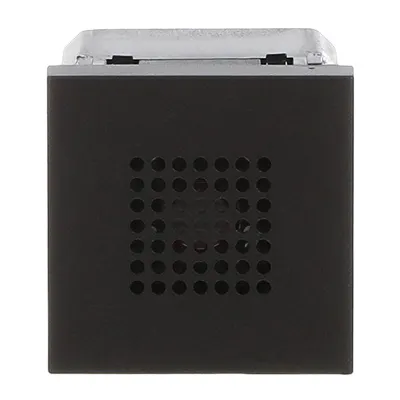

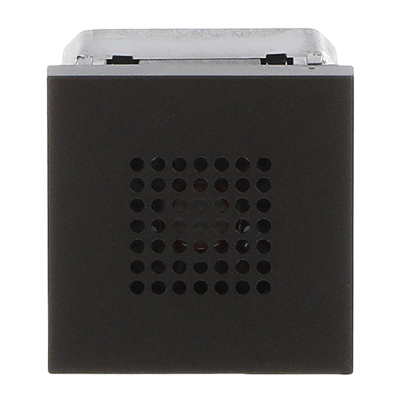

2CLA222400N1801 ABB: Color: Anthracite.
Rated voltage: 230 Vac / 50-60 Hz
4 melodies available
Acoustic power at 1 meter with cover plate: 72 dB
Size: 2 modules.
Instructions and Manuals
Instruction manual - Electronic doorbell - 8124.2 / N2224 / N2224.1
Mounting Type
Flush-mounted
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
IP20
Data Sheet, Technical Information
9AKK10103A5108
Sound dB (A)
72 dB
Number of Batteries
0
Current Type
AC
Rated Voltage (Ur)
230 ... 230 V
Power Consumption (@Pcons)
0.2 ... 0.2 A
Design Range
Zenit
Surface Finishing
Decor | Matt
Housing Material
Plastic
Material
Plastic | Thermoplastic
Color
Anthracite
Housing Color
Anthracite
Width in Number of Modular Spacings
2
Product Net Width
44 mm
Product Net Height
44 mm
Product Net Weight
122 g
Replaced Product ID (OLD)
2CLA222400N1802 | 2CLA222400N1803
RoHS Information
2CLA222400N1801_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
9AKK108467A7464-B REACH-2023 Declaration ABB Niessen
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230816
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Zenit Electronic Switches CE Declaration
ETIM 9
EC000131 - Bell
