2CLA222410N1901
Part Number: 2CLA222410N1901
Product Information
Extended Description

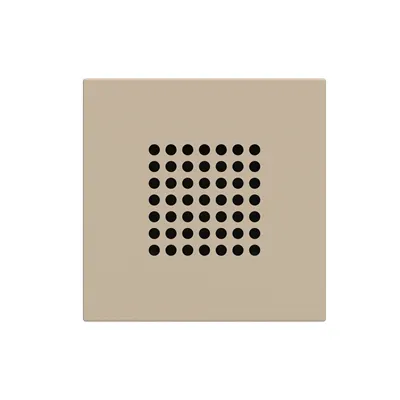

2CLA222410N1901 ABB: Color: Champagne.
Rated voltage: 127 Vac / 60 Hz.
4 melodies available.
Acoustic power at 1 meter with cover plate: 72 dB.
Size: 2 modules.
Instructions and Manuals
Instruction manual - Electronic doorbell - 8124.2 / N2224 / N2224.1
Mounting Type
Flush-mounted
Degree of Protection
IP20
Data Sheet, Technical Information
9AKK10103A5108
Sound dB (A)
72 dB
Number of Batteries
0
Current Type
AC
Rated Voltage (Ur)
230 ... 230 V
Power Consumption (@Pcons)
0.2 ... 0.2 A
Design Range
Zenit
Surface Finishing
Decor | Matt
Housing Material
Plastic
Material
Plastic | Thermoplastic
Color
Champagne
Housing Color
Champagne
Width in Number of Modular Spacings
2
Product Net Weight
121 g
Replaced Product ID (OLD)
2CLA222410N1902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC000131 - Bell
UNSPSC
39121311
