2CLA223300N1101
Part Number: 2CLA223300N1101
Product Information
Extended Description

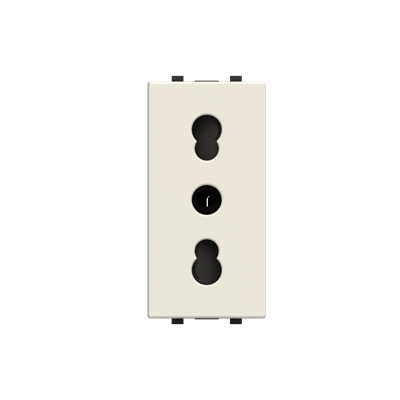

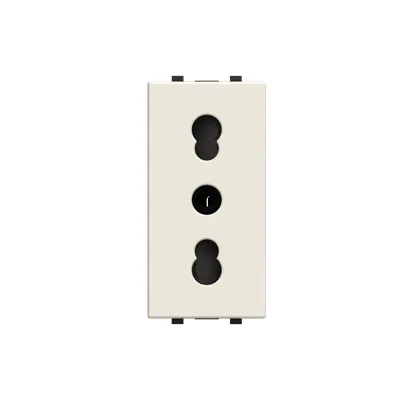

2CLA223300N1101 ABB: Color: White.
Rated voltage: 250 Vac.
Rated current: 10 / 16A.
Type F+L: 2P + E / P30/17.
Shuttered for child safety.
Screw terminals.
Size: 2 modules.
Instructions and Manuals
Manual - Zenit range
Mounting Type
Flush-mounted
Type of Fastening
Engage (Snap)
Degree of Protection
IP20
Environmental Information
Doc 42-03-04 Comunication Zen-IT 2CLA223300NXX (P40)
Data Sheet, Technical Information
9AKK10103A5108
Number of Phases
2
Number of Gangs
1
Connection Type
Screw Clamp
Socket Outlet Type
Power Socket Outlets - Italian P30 acc. to CEI 23-50
Number of Batteries
0
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Frequency (f)
50 … 60 Hz
Power Supply Type
External
Design Range
Zenit
Surface Finishing
Untreated | Glossy
Material
Plastic | Thermoplastic
Legend
Without imprint
Label Space Provided
No
RAL Number
RAL 9010 - Pure White
Color
White
Product Net Width
44 mm
Product Net Height
44 mm
Product Net Depth / Length
73 mm
Product Net Weight
40 g
RoHS Information
2CLA223300N1101_RoHS Declaration
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
6d498fa9-96d5-42e4-ba8f-b367adc5a182 Spain (ES)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC000125 - Socket outlet
UNSPSC
39121406
