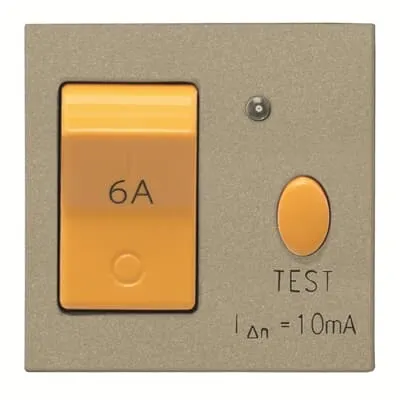

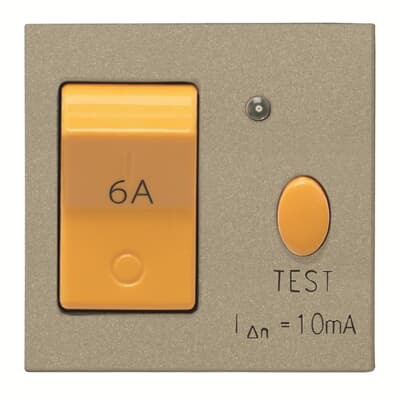

2CLA223410N1901
Part Number: 2CLA223410N1901
Product Information
Extended Description
2CLA223410N1901 ABB: Color: Champagne.
Rated voltage: 120 - 230 Vac; 50/60 Hz
Rated current: 6A
Braking capacity: 1.500A
Residual current (sensitivity - I∆n): 10 mA
C type magneto-thermic protection
A type residual current protection
Two-pole (1P + N) with 1 protected pole
Size: 2 modules.
Instructions and Manuals
MCB AC22 1P+N / RCBO DC22 1P+N - Instruction manual
Ambient Air Temperature
Operation -5 ... +35 °C | Storage -5 ... +50 °C
Degree of Protection
Front IP20
Data Sheet, Technical Information
9AKK10103A5108
Type of Residual Current
Type A
Number of Poles
1P+N
Number of Protected Poles
1
Number of Switch Positions
2
Actuator Type
Rocker
Switch Type
On / Off
Number of Batteries
0
Rated Voltage (Ur)
230 V
Rated Operational Voltage
Maximum 230 V
Input Voltage Type
AC
Rated Current (In)
6 A
Rated Frequency (f)
50/60 Hz
Design Range
Zenit
Surface Finishing
Decor | Matt
Material
Plastic | Thermoplastic
Color
Champagne
Width in Number of Modular Spacings
2
Product Net Width
44 mm
Product Net Height
44 mm
Product Net Weight
1 g
Replaced Product ID (OLD)
2CLA223410N1902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
ETIM 9
EC002611 - Control switch
UNSPSC
39121602
